B-1000 Polarized Light

OPTIKA B-1000 polarized light microscopes are the result of an extensive modularity combined with the state-of-the-art, exclusive and high performing X-LED8 lighting source (8 W), corresponding to over 100 W halogen bulb.
A specific version (POL-I) includes also an epi-illumination attachment with built-in X-LED8 lighting source for excellent performance in reflected light.

This series features the outstanding brightness and incredible colour reproduction, to be a reliable solution for routine and research applications and is equipped with a strain-free polarised condenser, a centerable rotatable stage with a mechanical stage for fine movements of the specimen, a quintuple centerable revolving nosepiece and a Bertrand lens allowing observations in orthoscopy and conoscopy.



B-1000POL and POL-I Series give multiple options of configuration, from basic manual controls to a motorized version, including motorized focus.





Images are for illustrative purposes only

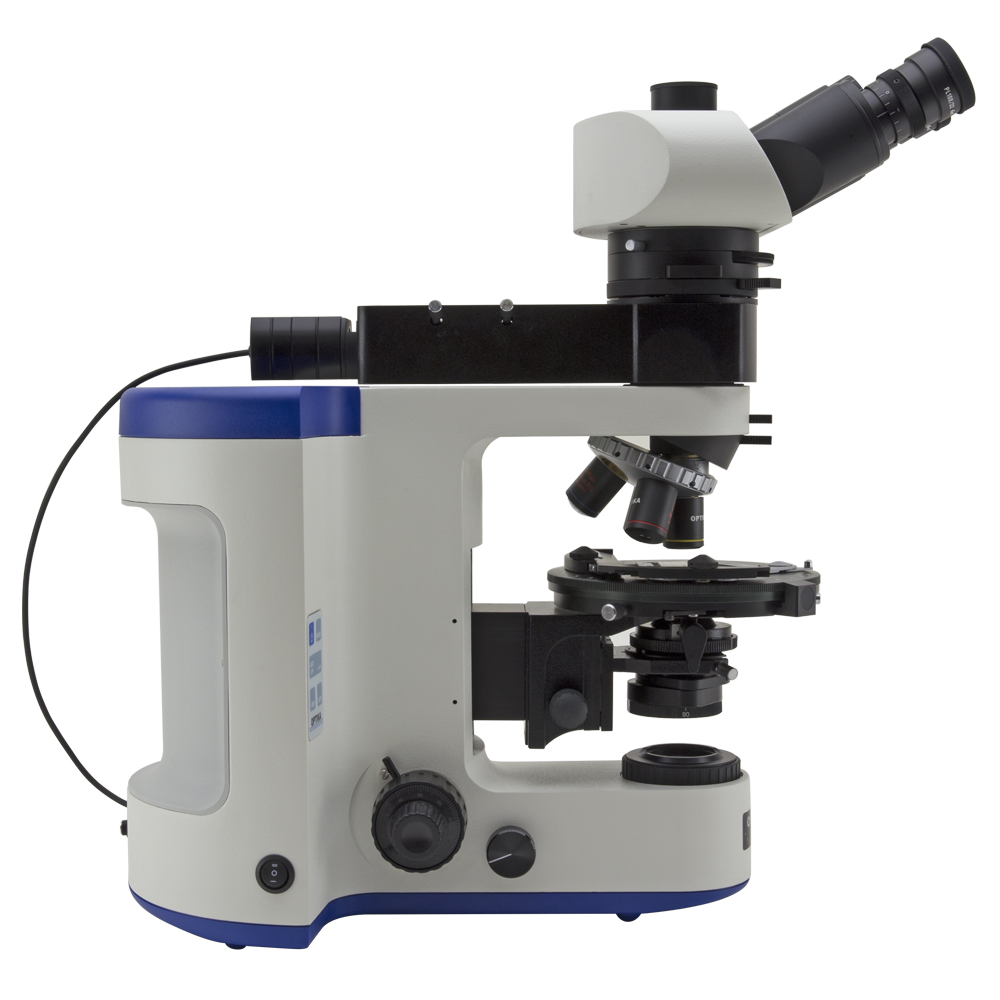

WHEN ERGONOMY MEETS AN EXTRA STABILITY

A completely new design and a dye-cast aluminum stand offer solidity and durability, for the most demanding laboratory use. Low position focus and stage controls allow a fast and comfortable operation. Frequently used controls as light intensity adjustment and diaphragm are also placed in the lower part of the stand and enable operation without having to take the eyes off the specimen.

X-LED White Illumination

X-LED illumination system is based on a pure white high-efficiency LED and a special optics. It guarantees constant color temperature, no heat, and an extreme electrical consumption efficiency. The whole system is pre-aligned and boasts a lifetime of 50.000

X-LED8 – Two Times Brighter Than Any Other

STATE-OF-THE-ART ILLUMINATION SYSTEM

» Unmatched colour fidelity and brightness of your specimen
» Special technology, able to double the light intensity
» Constant pure-white colour temperature (6.300K)

CUT ELECTRICITY BILLS BY 90%

» Money & energy saving
» Low power consumption, only 8 W
» LED long lifetime (50.000 hours = 20 years at 8 hours/day usage)

ico_x-led8

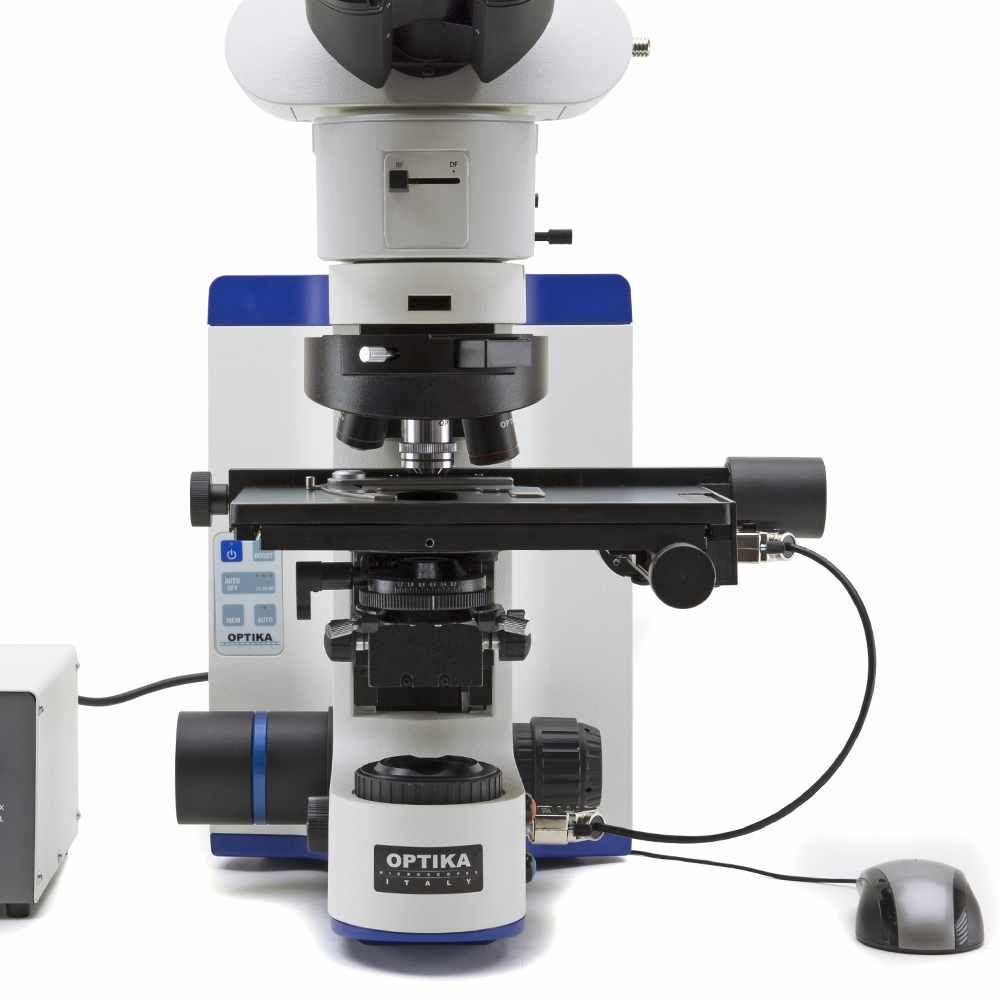

X-Y-Z motorized stage

Remote-controlled microscope

The stage can be remote-controlled through a dedicated software: X, Y, Z axes, as well as nosepiece, can be moved with a single click. Communication protocol is available for interfacing with custom software, such as automated analysis or autofocus.

Light under control

Intelligent control of the microscope illumination: the “AUTO-OFF” function automatically switches the light off after a user-selectable time period. “BOOST” gives an extra high level of illumination for light-demanding applications. “AUTO” allows to store an illumination level, and to maintain it throughout the inspection.

B-1000POL_models
B-1000POL_icons

Model: B-1000POL


Transmitted polarized light microscope with the exclusive X-LED8 lighting source (8 W, corresponding to over 100 W halogen bulb), as transmitted illumination.
Create your tailored microscope for routine and research applications.

B-1000POL-I_models
B-1000FL-HBO_icons

Model: B-1000POL-I


Transmitted and reflected polarized light microscope with the exclusive X-LED8 lighting source (8 W, corresponding to over 100 W halogen bulb), as transmitted and reflected illumination.
Create your tailored microscope for routine and research applications.
