B-380 Darkfield

OPTIKA B-380 Series is composed also by an exclusive immersion darkfield configuration, purposely engineered for fresh blood analysis and equipped with a dedicated objective (100x Oil Iris) and a special condenser with integrated, exclusive X-LED³ illuminator replaces any other external and expensive lighting source required for these applications and is ideal for great-looking, rich and high-quality specimen view. OPTIKA immersion darkfield system provides the same result achieved by 150 W external illuminators in combination with traditional cardioid darkfield condenser.

Darkfield is used to observe unstained samples causing them to appear brightly lit against a dark, almost purely black, background.



Related Documents:



FROG_BLOOD_SMEAR_100x(oil)_darkfield_B-383DK000

DARKFIELD

Dark Field illumination is a technique used to observe unstained samples causing them to appear brightly lit against a dark, almost purely black, background. B-383DK has a powerful LED illuminator built in the condenser and a “special” 100x Oil IRIS Objective, the ideal solution for fresh blood analysis.

B-380 Series is available also in different techniques (brightfield, phase contrast, fluorescence, polarized light, material science).

Images are for illustrative purposes only

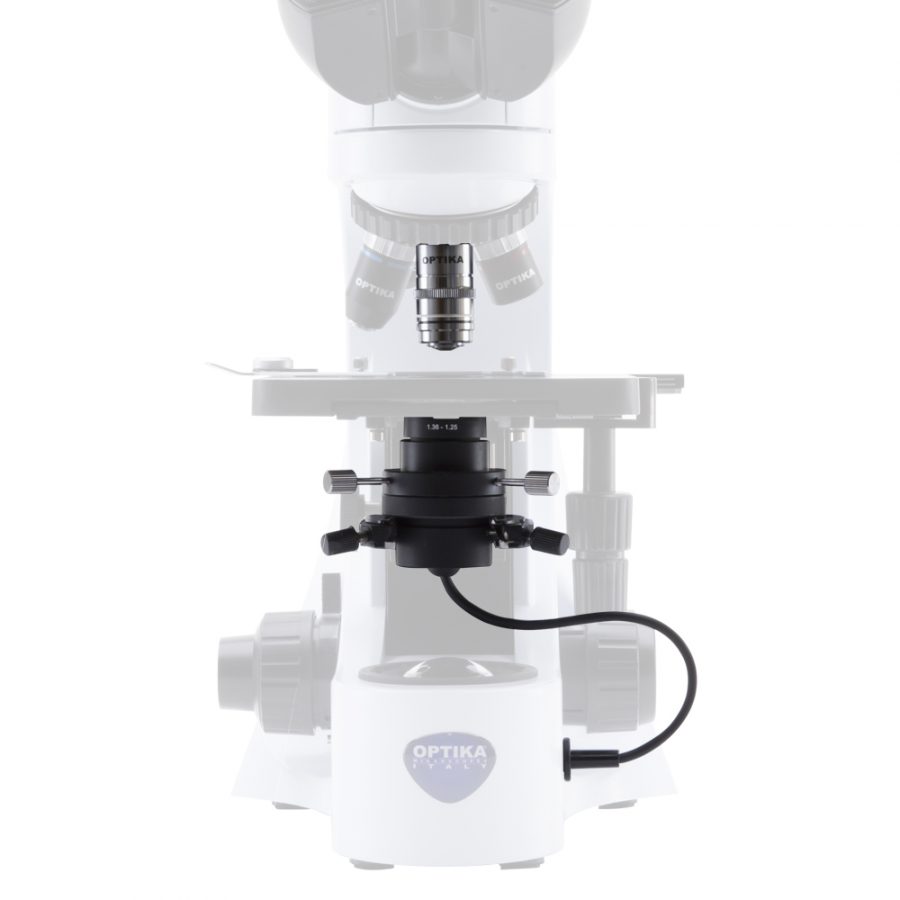

EXCLUSIVE X-LED3 DARKFIELD CONDENSER

The special condenser with integrated, exclusive X-LED3 illuminator replaces any other external and expensive lighting source required for these applications and is ideal for great-looking, rich and high-quality  specimen view. Our immersion darkfield system provides the same result achieved by 150 W external illuminators in combination with traditional cardioid darkfield condenser.

MATRICE_BENEFITS_B-383DK_03

Improving The Most Important Aspects of Microscopy Experience

HIGH QUALITY, FLAT IMAGES CAPTURED WITH OUTSTANDING OPTICS

» Binocular and trinocular heads with 20mm field number
» True infinity optical system available (IOS)
» Fully centerable condenser for precise light control

LABORATORY GRADE OPTICS

» N-PLAN objectives, high numerical apertures
» Planachromatic optics with more than 90% flat field
» Significant optical correction, low field curvature and distortion

X-LED³ Exclusive Lighting Source

Achieve bright images, improved colour fidelity, pure white colour temperature, incredibly low energy consumptions and longer lifespan with the unique X-LED³ technology, able to double the light intensity for incomparable performance. Relevant money and energy saving thanks to the incredibly low energy consumptions which allows you to cut the electricity bills by 90%!

X-LED³ – Two Times Brighter Than Any Other

STATE-OF-THE-ART ILLUMINATION SYSTEM

» Unmatched colour fidelity and brightness of your specimen
» Special technology, able to double the light intensity
» Constant pure-white colour temperature (6.300K)

CUT ELECTRICITY BILLS BY 90%

» Money & energy saving
» Low power consumption, only 3.6W
» LED long lifetime (65,000 hours = 25 years at 8 hours/day usage)

xled3

Safe And Convenient Operations

The rackless stage has been designed with a belt-driven mechanism that allows a smooth movement without any protruding part. This design gives you a more compact solution and lowers any risk of injury after accidentally hitting the rack with your hands.

A New Frontier in Ergonomic Product Design

ELEGANT DESIGN WITHSTANDING EVERYDAY USE

» Ergonomic positioning of the main controls
» Long lasting mechanical parts, rackless moving stage
» Maintenance-free illumination system

EASY TO CARRY, LIGHT, STEADY

» Improving productivity, reducing fatigue
» Increases job accuracy and quality
» Easily portable, with comfortable handgrip

Large Specimen View (20mm Field Number)

Enjoy a 20mm field of view ensures you to gain peripheral view and comfort when observing the specimen. This means more efficient inspections and allows a natural and easy view, particularly needed in a laboratory environment.

B-383DK_models
B-383DK_icons

Model: B-383DK


Laboratory biological microscope for brightfield and darkfield observations with N-PLAN objectives (and W-PLAN 100x with iris) for biology and especially darkfield fresh blood analysis and the exclusive X-LED³ illumination system.

Objectives:
N-PLAN 4x, 10x, 40x,
W-PLAN 100x (oil, with iris diaphragm)
Observation modes:
Brightfield and darkfield.
Condenser:
Abbe N.A. 1.25, with iris diaphragm, focusable and centerable. Darkfield N.A. 1.36 with built-in X-LED³.



Some application examples showing the extreme versatility of B-380 Series in its several available configurations. Applications in education, biology, botany and simple material analysis. This series represents the best entry-level solution for the routine laboratory.
