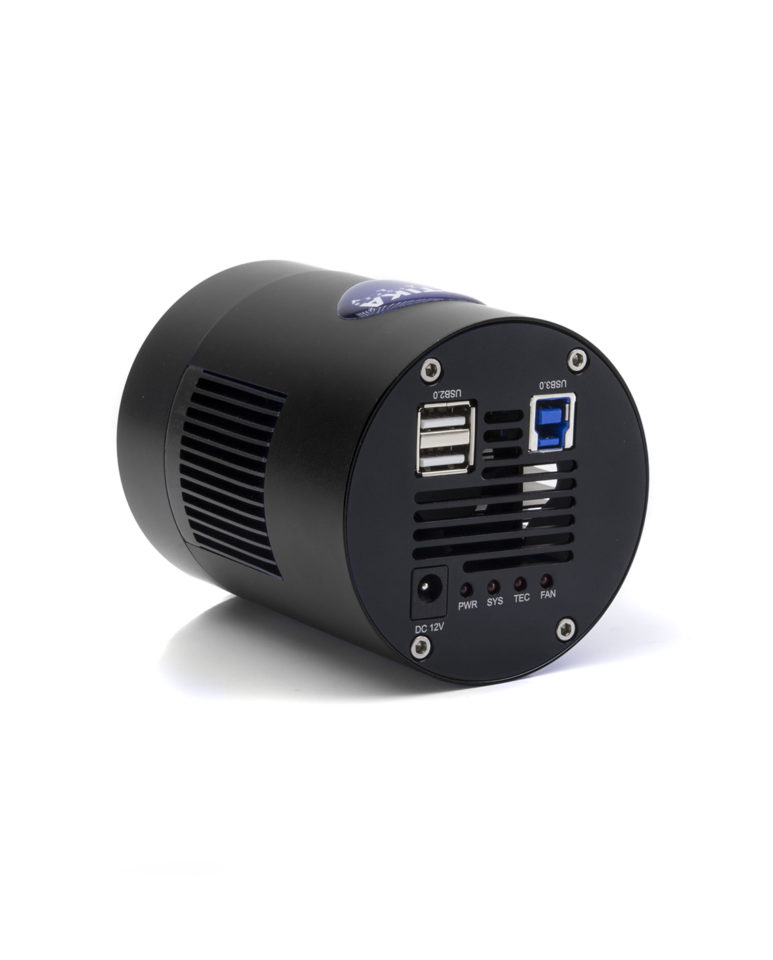

C-P20CM


Back to Other Models

Digital camera resolution: 20 MP (5440 x 3648)
Signal output: USB 3.0
Sensor Size: 1”
Sensor technology: CMOS
Sensor type: SONY EXMOR
Image format: 3/2
Pixel size: 2.4 x 2.4 μm
Frame rate full resolution: 17.8 fps (5440 x 3648)
Frame rate other resolutions: 41 fps (4096 x 2160); 51 fps (2736 x 1824); 64 fps (1824 x 1216)
Sensitivity: 388mV at 1/30sec
Dark signal: 0.21mV at 1/30sec
Cooling System: Internal two-stage TE cooling system -45°C
ADC Conversion: 14 Bit
Color Depth: 1 Bit; 4 Bit; 8 Bit; 24 Bit
Exposure Time: 0.1 msec – 3600 sec
Binning: 1×1; 2×2; 3×3
IR filter: 380-650 nm (IR-cut filter)
Camera power: PC USB
C-mount: YES

Accessories included: calibration slide, 1.8 m USB cable, power supply for cooling system
