GEMOLOGY

OPTIKA GEMOLOGY Series includes stereomicroscopes purposely designed for stone inspection and stone setting. Jewels and gems have a variety of grade, which ultimately influence their value and cost on the market; therefore it is important to have solutions that are purposely designed for gemology.

Choose between 20mm or 22mm field of view and simple or gemological stand, depending by the model.

Especially OPTIGEM Series offers the ideal configuration, with multiple options for illumination and contrast techniques, such as incident, transmitted and oblique brightfield / darkfield, polarization and immersion analysis. They come with a special optical condenser configuration to ensure real, perfect darkfield application. OPTIGEM-1 & OPTIGEM-2 are two-in-one gemology instruments that can be used both in vertical and horizontal position in a very easy way, just by turning one knob: the horizontal position extends the use of a gemological microscope, giving the possibility to perform immersion analysis by submerging a sample in liquid.



Related Literature:





Images are for illustrative purposes only

Specifically Designed for Specialists

Gemological stereomicroscopes are meant to help with stone inspection and stone setting.
Jewels and gems have a variety of grades (or quality levels), which ultimately influence their value
and cost on the market; therefore it is important to have solutions that are purposely designed
for gemology. These stereomicroscopes are equipped with iris and darkfield condenser on the
bottom light source, and with a set of on stage tweezers to hold the stone in place.

Much More Than Gemological Stereomicroscopes

OPTIGEM-1 & OPTIGEM-2 are two-in-one gemology instruments that can be used both in vertical and horizontal position in a very easy way, just by turning one knob (no disassembling and re-assembling operations are required). The horizontal position extends the use of a gemological microscope, giving the possibility to perform immersion analysis by submerging a sample in liquid. If the stone’s refractive index is close to the liquid’s one, immersion makes the interior more visible by reducing the effects of refraction and surface reflection. This enables you to see a gem’s inclusions or color distribution more easily. Immersion is also necessary to see crystal growth structures, which might help you separate natural from synthetic corundum. Features like curved growth striae in flame-fusion synthetics, or separation planes in assembled stones, are often far easier to see when the stone is immersed.

Vertical position for standard gem analysis with darkfield illumination and polarizing tecnique

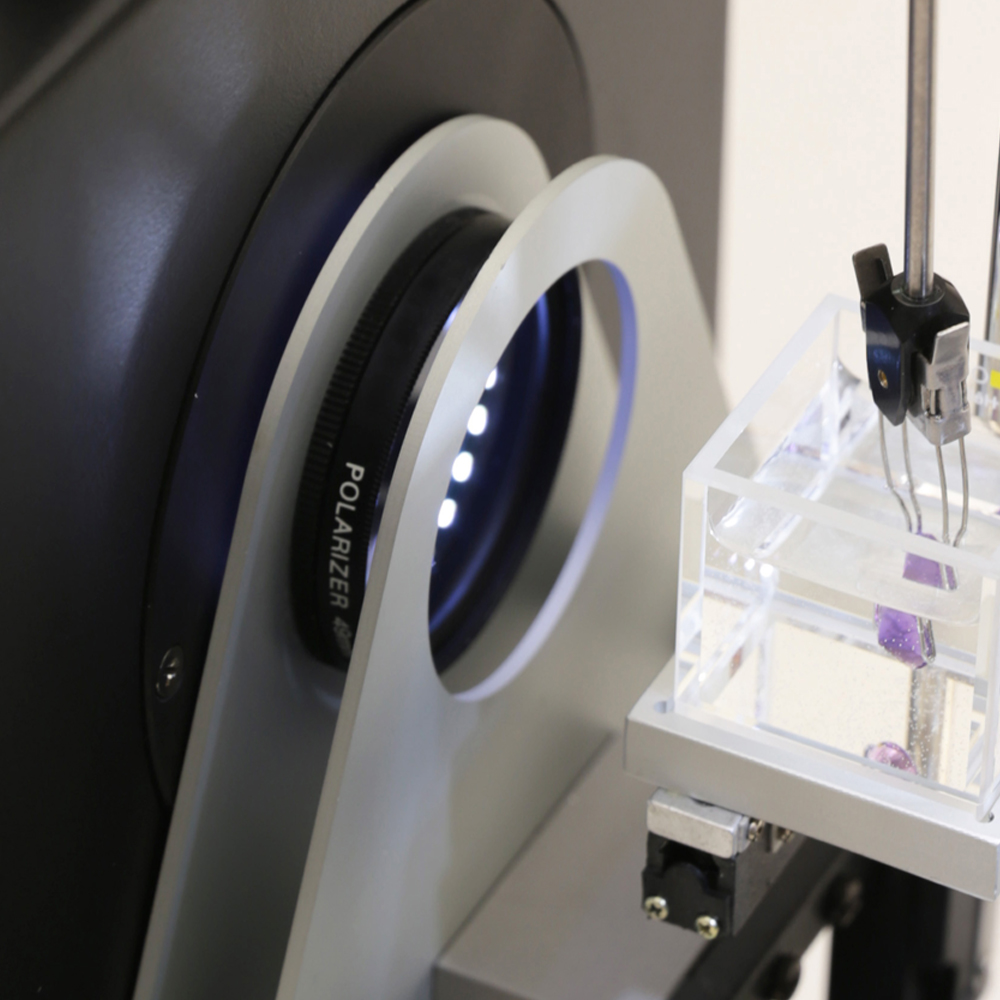

Horizontal position for immersion gem analysis

Incredibly Versatile Operations

OPTIGEM Series offers multiple options for illumination and contrast techniques, such as
incident, transmitted and oblique brightfield darkfield, polarization and immersion analysis (only on Optigem 1 & 2).
They come with a special (see the dedicated chapter for further information) optical condenser
configuration to ensure real, perfect darkfield application.

Ultrabright LED Condenser for Optimized Illumination

An ultrabright LED-based electronic condenser with intensity control allows to switch from brightfield to darkfield;
it also produces perfectly the colourvof daylight. The condenser uses a new optical configuration especially created in order to obtain a perfect darkfield application.

Dedicated LED Illumination For Outstanding Results During Grading

The requirement for a pure white (6.3000 K), particularly high intensity light is because only
incident light is seen: a flexible arm can be freely positioned and the brightness of the LED
illumination accurately adjusted. LED transmitted illumination is available through a diffusing disc
(for brightfield) or as a side-emitting LED ring (darkflield, with black background) only on Optigem 1 & 2.
A selector gives the chance to set the microscope in 3 configurations: brightfield only, darkfield
only, or both brightfield and darkfield.

OPTIGEM-1_model
OPTIGEM-1_icone

Model: OPTIGEM-1


Binocular stereomicroscope for brightfield and darkfield applications with special side-emitting LED illumination ring for true darkfield illumination. Equipped also with an incident LED flexible arm and a diffusive LED disc for transmitted illumination. The instrument can be easily tilted horizontally for immersion analysis. The body is 360° rotable to show gems to customers, or share opinions with a colleague.

OPTIGEM-2_model
OPTIGEM-2_icone

Model: OPTIGEM-2


Trinocular stereomicroscope for brightfield and darkfield applications with special side-emitting LED illumination ring for true darkfield illumination. Equipped also with an incident LED flexible arm and a diffusive LED disc for transmitted illumination. The instrument can be easily tilted horizontally for immersion analysis. The body is 360° rotable to show gems to customers, or share opinions with a colleague.

line
OPTIGEM-3_model
OPTIGEM-3_icone

Model: OPTIGEM-3


Binocular stereomicroscope for brightfield and darkfield applications. The darkfield condenser uses a typical optical configuration, based on halogen illumination and a classic reflecting system. A flexible arm with a fluorescent tube simulates the color of daylight for accurate color grading. The stand can be inclined backward by 45° for to increase comfort and ergonomy.

OPTIGEM-4_model
OPTIGEM-4_icone

Model: OPTIGEM-4


Trinocular stereomicroscope for brightfield and darkfield applications. The darkfield condenser uses a typical optical configuration, based on halogen illumination and a classic reflecting system. A flexible arm with a fluorescent tube simulates the color of daylight for accurate color rading. The stand can be inclined backward by 45° for to increase comfort and ergonomy.

line
SZM-GEM-1_model
SZM-GEM-1_icone

Model: SZM-GEM-1


Binocular stereomicroscope with pillar stand and illuminated stage for brightfield and darkfield applications with special LED illumination ring for true darkfield illumination.

SZM-GEM-2_model
SZM-GEM-2_icone

Model: SZM-GEM-2


Trinocular stereomicroscope with pillar stand and illuminated stage for brightfield and darkfield applications with special LED illumination ring for true darkfield illumination.



Some application examples demonstrating the performance of OPTIGEM Series, especially designed to observe samples of precious stones and jewels and provided with specific features for gemological needs.

ACCESSORIES FOR OPTIGEM - 1/2

OPTIGEM-1
  • ST-201 Iris aperture diaphragm for darkfield (only for OPTIGEM 1 & 2).
  • ST-207 Iris aperture diaphragm for standard illuminator (only for OPTIGEM 1 & 2).
  • ST-202 Polarizing analisys kit (only for OPTIGEM 1 & 2).
  • ST-203 Glass immersion cell (only for OPTIGEM 1 & 2).
  • ST-204 Translating cell holder (only for OPTIGEM 1 & 2).
  • ST-205 Vacuum pick-up (with electric vacuum pump).
  • ST-081 Eyepieces (pair) WF10x/20 mm.
  • ST-082 Eyepieces (pair) WF15x/15 mm.
  • ST-083 Eyepieces (pair) WF20x/10 mm.
  • ST-084 Eyepiece micrometer WF10x/20 mm, 10mm/100um.
  • ST-086 Additional lens 1.5x (w.d. 47mm).
  • ST-087 Additional lens 2x (w.d. 26mm).
  • ST-089 Reflex camera adapter for FULL FRAME sensor.
  • ST-090 Focusable C-Mount adapter for 1/3” sensor.
  • ST-090.1 Focusable C-Mount adapter for 1/2” sensor.
  • M-173 Photo adapter for APS-C and Full Frame Reflex cameras.
  • M-114 C-Mount adapter for 1/2” sensor.
  • M-115 C-Mount adapter for 1/3” sensor.
  • M-116 C-Mount adapter for 2/3” sensor.
  • M-005 Micrometer slide for software calibration, 1mm/10um, 10mm/100um.
  • M-113.1 Ring adapter, 30mm (for monocular and binocular microscopes).
  • 15104 Cleaning kit.

ACCESSORIES FOR OPTIGEM - 3/4

OPTIGEM-4
  • ST-231 Polarizing analisys kit (only for OPTIGEM 3 & 4).
  • ST-142 Eyepieces (pair) WF15x/16mm.
  • ST-143 Eyepieces (pair) WF20x/12mm.
  • ST-144 Eyepieces (pair) WF25x/9mm.
  • ST-145 Eyepiece micrometer WF10x/22mm, 10mm/100um.
  • SAO1.5 Additional lens 1.5x (w.d. 49mm).
  • SAO2 Additional lens 2x (w.d. 28mm).
  • ST-146 Photo adapter for REFLEX camera with FULL FRAME sensor.
  • ST-147 Focusable C-Mount adapter for 1/3” sensor.
  • ST-147.1 Focusable C-Mount adapter for 1/2” sensor.
  • M-621 Halogen bulb 6V/30W.
  • M-173 Photo adapter for APS-C and Full Frame Reflex cameras.
  • M-114 C-Mount adapter for 1/2” sensor.
  • M-115 C-Mount adapter for 1/3” sensor.
  • M-116 C-Mount adapter for 2/3” sensor.
  • M-113.1 Ring adapter, 30mm (for monocular and binocular microscopes).
  • M-005 Micrometer slide for software calibration, 1mm/10um, 10mm/100um.
  • 15104 Cleaning kit.

ACCESSORIES FOR SZM-GEM - 1/2

SZM-LED2
  • ST-230 Polarizing analisys kit (only for SZM-GEM series).
  • ST-082 Eyepieces (pair) WF15x/15mm.
  • ST-083 Eyepieces (pair) WF20x/10mm.
  • ST-084 Eyepiece micrometer WF10x/20mm., 10mm/100um
  • T-086 Additional lens 1.5x (w.d. 47mm).
  • ST-087 Additional lens 2x (w.d. 33mm).
  • ST-089 Reflex camera adapter for FULL FRAME sensor.
  • ST-090 Focusable C-Mount adapter for 1/3” sensor.
  • ST-090.1 Focusable C-Mount adapter for 1/2” sensor.
  • M-173 Photo adapter for APS-C and Full Frame Reflex cameras.
  • M-114 C-Mount adapter for 1/2” sensor.
  • M-115 C-Mount adapter for 1/3” sensor.
  • M-116 C-Mount adapter for 2/3” sensor.
  • M-113.1 Ring adapter, 30mm (for monocular and binocular microscopes).
  • M-005 Micrometer slide for software calibration, 1mm/10um, 10mm/100um.
  • 15104 Cleaning kit.

GET THE MOST OUT OF OUR ACCESSORIES

A wide range of optional accessories completes these instruments: from gemology clip, iris aperture diaphragm, polarization analysis kit,
optical unit to switch the darkfield from a “sharp” (gem exhibition) to a “soft” (diamond analysis) mode,
translating cell holder with vacuum pick-up and quartz immesion cells complete and enhance the OPTIGEM-1 & OPTIGEM-2 performances.
All the accessories can be stacked, in any order, while using the microscope both horizontally and vertically.

ST-202 – Polarizing analisys kit

Polarization technique allows to quickly determine if the stone at hand is isotropic or anisotropic or, at best, to determine the optic character of gemstones (twin planes, strain, pleochroism, etc.).  It is also the preferred tool for separating synthetic Quartz from its natural counterparts. In addition, the polarizing microscope may be very useful for distinguishing solid inclusions from negative inclusions as well as for spotting polysynthetic twinning.

line

15104 – Cleaning kit

It cleans glass quickly and effectively, without leaving residue or odor.
Ideal for precision lens or prism cleaning.
