MS/SFX Series

OPTIKA MS/SFX Series includes a wide selection of stereomicroscopes designed to satisfy every need in both teaching and amateur fields.
Slim and easy to carry solutions, it is equipped with all you need to start learning to use a scientific instrument: 20 mm field of view, up to 40x maximum magnification, several options concerning illumination (including rechargeable batteries), objectives, and stands.



Related Literature:







Images are for illustrative purposes only

GREENOUGH OPTICAL SYSTEM

The V-shape optical path of Greenough allows us to design a very compact and a slim unit,
highly versatile and appreciated for the 3D viewing. Vertical heads or 45° inclined to grant
comfortable posture to the user even after several hours of operation.

Designed For Simplicity & The Youngest Users

DESIGNED FOR NOVICE USERS

» Extremely reliable microscopes
» Particularly recommended for primary school
» Ideal for education, biology and material science

EDUCATIONAL STEREOMICROSCOPES

» Choose among monocular and binocular heads
» Generally, 20mm field number
» Equipped with high performance LED illumination

Attention To Detail

HANDY, YET EXTREMELY STABLE

» Compact, practical and intuitive to use
» Optics ensuring good quality images
» Get impressive images and live videos with cameras

EASY TO TAKE CARE OF

» Sturdy, durable for extended lifetime
» Only simple lens cleaning is required time to time
» Dust cover protects from environmental contaminants

Suitable for Field Use

CORDLESS, EASILY TRANSPORTABLE

» Stable, yet compact and light weight
» Long-lasting, up to 10 hours from a single charge.
» Can be transported for being used on site

NO NEED FOR POWER CONNECTION

» Powered by rechargeable batteries (SFX models)
» Extremely easy and fast vision
» Always ready to work

A New Frontier In Illumination Adjustment

HIGH COMFORT TOUCH CONTROL

» Light intensity settable via a simple click
» 5 pre-set intensity levels
» On transmitted (Tra) and incident (Inc) light

FULFILL ALL THE LEARNING CHALLENGES

» Turnable objective with up to 3 magnifications
» Precision stand for accurate focusing
» 3.2 MP integrated digital camera (on SFX-91D)

360° ROTATING HEADS

SFX-51 and SFX-52 have a 360° rotating head, for the most comfortable teaching experience.
The head, through rotation, can be shared among different users or adjusted to the user position.

LWD – Long Working Distance

ST-50Led has a special objective with long working distance that allows you to inspect bulky
samples, thanks also to its overhanging arm stand and LED flexible incident light.

CAPTURE & DISPLAY IMAGES ON YOUR PC

The 3 MP camera integrated in the SFX-91D head easily captures pictures and videos,
providing sharp images in a very intuitive and user-friendly way,
being ideal also for the first experiences in digital microscopy.
Discover new horizons!

MS-1_model

Model: MS-1


Portable microscope but also a multifunctional testing instrument for applications where magnifying lenses are not good enough. It has to be used directly on the specimen to be inspected. Total magnification: 100x.

MS-2_models

Model: MS-2


Entry-level monoscope with fixed objective (2x) that can be combined to external illuminators, in case some light is required.

STX_models

Model: STX


Simple binocular stereomicroscope equipped with fixed objective (2x) and LED incident illumination, combining bright and uniform illumination with low consumption. Powered by AA batteries (not included).

ST-30FX_models

Model: ST-30FX


Classic binocular stereomicroscope equipped with turnable objective (2x-4x), pillar stand, and incredibly bright and uniform LED illumination (transmitted and incident).

line
SFX-31_models

Model: SFX-31


Binocular stereomicroscope equipped with turnable objective (2x- 4x), pillar stand, and incredibly bright and uniform LED illumination (transmitted and incident) with rechargeable batteries.

SFX-32_models

Model: SFX-32


Binocular stereomicroscope equipped with turnable objective (1x-3x), pillar stand, and incredibly bright and uniform led illumination (transmitted and incident) with rechargeable batteries.

line
SFX-33_models

Model: SFX-33


Binocular stereomicroscope equipped with turnable objective (2x-4x), fixed arm with handle, and incredibly bright and uniform led illumination (transmitted and incident), settable through the exclusive touch control. Powered by rechargeable batteries.

SFX-34_models

Model: SFX-34


Binocular stereomicroscope equipped with turnable objective (1x-3x), fixed arm with handle, and incredibly bright and uniform led illumination (transmitted and incident), settable through the exclusive touch control. Powered by rechargeable batteries.

line
SFX-51_models

Model: SFX-51


Binocular stereomicroscope equipped with turnable objective (2x-4x), 360° rotating head, fixed arm with handle, and incredibly bright and led uniform illumination (transmitted and incident), settable through the exclusive touch control. Powered by rechargeable batteries.

SFX-52_models

Model: SFX-52


Binocular stereomicroscope equipped with turnable objective (1x-3x), 360° rotating head, fixed arm with handle, and incredibly bright and uniform led illumination (transmitted and incident), settable through the exclusive touch control. Powered by rechargeable batteries.

line
SFX-91_models

Model: SFX-91


Binocular stereomicroscope equipped with turnable objective with 3 magnifications (1x-2x-4x), precision fixed arm with handle, and incredibly bright and uniform led illumination (transmitted and incident), settable through the exclusive touch control. Powered by rechargeable batteries.

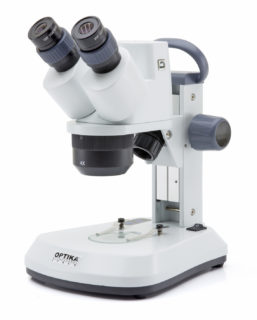

SFX-91D_models

Model: SFX-91D


Digital binocular stereomicroscope equipped with with 3 magnifications turnable objective (1x-2x-4x), precision fixed arm with handle, and incredibly bright and uniform led illumination (transmitted and incident), settable through the exclusive touch control. Powered by rechargeable batteries.

line

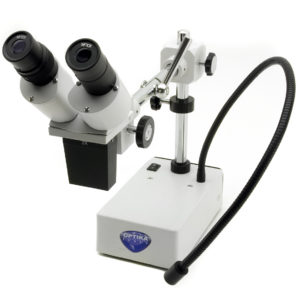

ST-50Led_

Model: ST-50Led


Binocular stereomicroscope equipped with fixed objective (2x), swiveling LED incident illumination on an overhanging, flexible arm. Ideal for long working distance (119 mm with standard 2x objective, 165 mm with ST-025, 124 mm with ST-026).



Some application examples showing the extreme versatility of SFX/STEREO Series. Applications can be found in education, biology, botany, or basic quality control.
