SZM Series

OPTIKA SZM Series is ideal for routine inspections on several industries, offering a V-shaped Greenough optical path to provide 3D viewing and detailed inspections on samples with a significant depth.

Binocular and trinocular heads are 20mm field of view and 45° inclined to grant comfortable posture to the user even after several hours of operation. The 6.43:1 zoom ratio enables most samples to be observed at the appropriate magnifications (additional lenses allow higher magnifications).

An extremely wide stand selection gives the chance to create tailored stereomicroscope: choose among the several models available to cover every customers’ needs, in terms of illumination (including the state-of-the-art, exclusive X-LED³ incident light of 3.6W on selected models), arm extension (including overhanging stands) and focusing system.
Special external illuminators and moving/heating stages are also available for specific applications.



Related Literature:





Images are for illustrative purposes only

Greenough Optical System

The V-shape optical path of Greenough allows us to design a very compact and a slim unit,
highly versatile and appreciated for the 3D viewing. Samples with significant depth can be quickly inspected.
Binocular and trinocular heads are 45° inclined to grant comfortable posture to the user even after several hours of operation.

X-LED³ Exclusive Lighting Source

Special technology able to double the light intensity for incomparable performance,
ensuring constant pure-white colour temperature.
Relevant money & energy saving thanks to the incredibly low energy consumptions
allow you to cut the electricity bills by 90%!
On SZM-LED1, SZM-LED2

X-LED³ – Exclusive Lighting Source

POWERFUL AND UNIFORM ILLUMINATION

» Best in class lighting tecnology
» Special technology able to double the light intensity
» Constant pure-white colour temperature

CUT ELECTRICITY BILLS BY 90%

» Unparalleled performance
» Incredibly low energy consumptions, only 3.6W
» Power equivalence to 50W halogen lamp

LED – Optimized Illumination

MONEY & ENERGY SAVING

» LED long lifetime (50.000 hours, that means 20 years in case of 8 hours/day usage)
» No overheated surfaces
» Less than 10% of a standard halogen bulb consumption

MAKE SURE TO ACHIEVE THE BEST WORKING CONDITIONS

» Dedicated LED light for specific applications
» Stands with LED diffusing disc for transmitted illumination.
» Cold light and ring light LED illuminators.

Clear, Accurate And Comfortable Sample Observation

ULTRA-PRECISE EXAMINATION

» High-resolution images to observe details
» Bright and clear flat images
» Accurate colours reproduction

ENHANCE YOUR WORKING CONDITIONS

» Adjustable tilting tube and right posture ensure long operation
» Reduces back and neck fatigue a minimum
» Convenient front-access operation

6.43:1 Zoom Ratio

SZM Series has 0.7x-4.5x zoom range (6.43:1 zoom ratio), being purposely designed for routine inspections.
This zoom ratio enables most samples to be observed at the appropriate magnifications.
When combined with proper accessories (2x additional lens and 20x eyepieces), SZM delivers excellent images up to 180x.

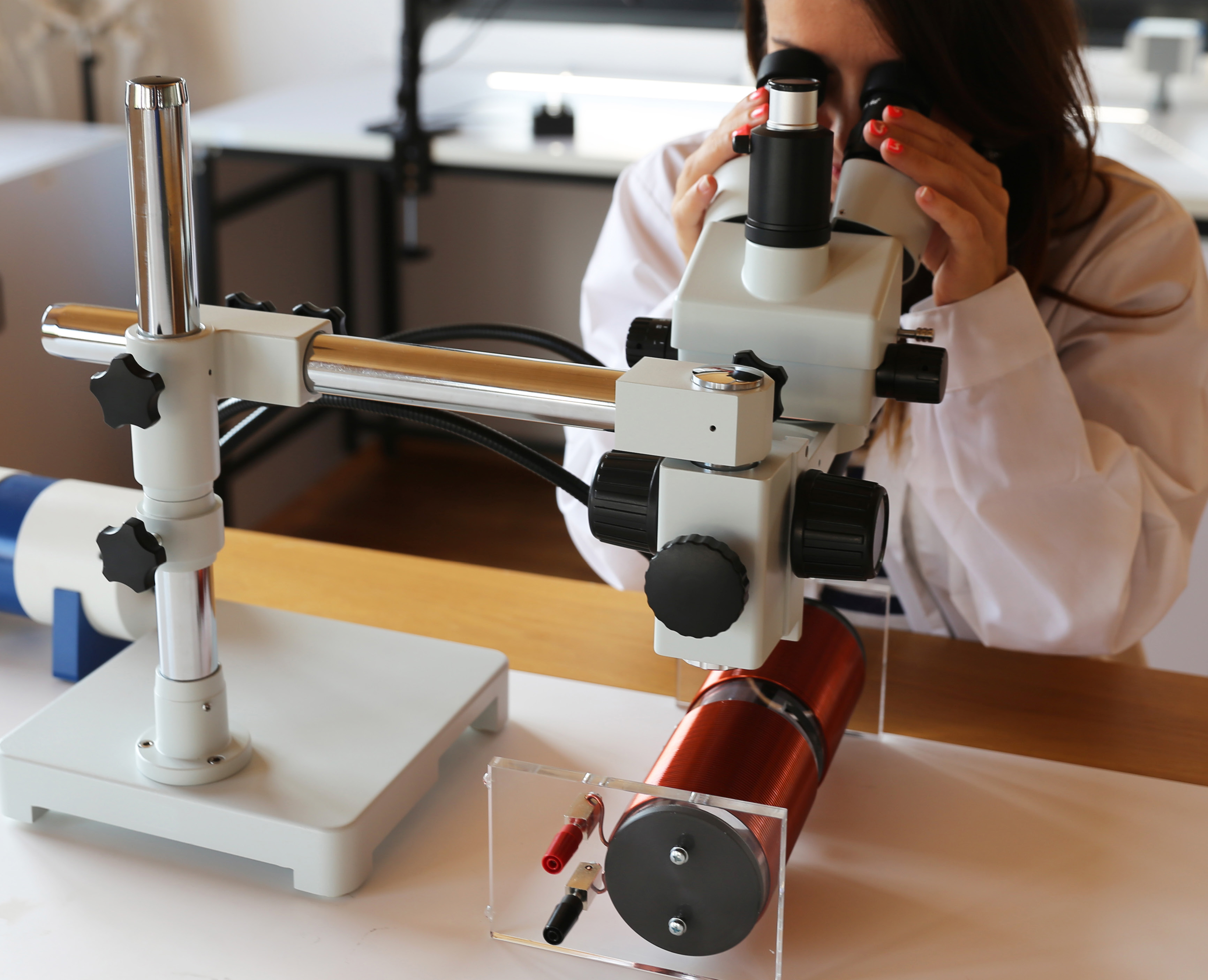

Overhanging Stand, In Case Of Large Samples

This stand is recommended for efficient, quick and precise observation and digital imaging of large samples,
that cannot be processed with regular stands.
Achieve 360° rotation and smooth movement with no limits, as the mechanism can be tilted from right to left, backward to forward.

SZM Heads

SZM-T_model

Model: SZM-T


Greenough, trinocular stereozoom head with 21 mm field number, infinitely adjustable zoom with 6.43:1 zoom ratio and 100mm working distance

line

SZM Range

SZM-LED2_model

Model: SZM-LED2


Trinocular stereomicroscope, pillar stand and ultra-flat base, illuminated stage with X-LEDT1 transmitted illumination and X-LED³ incident illumination for outstanding brightness, freely settable.

line
SZM-D_model

Model: SZM-D


Digital binocular stereomicroscope with simultaneous view from both eyepieces and camera. The built-in camera can be connected to any PC.



Some application examples demonstrating the versatility of SZM series. Routine applications are extremely facilitated!
