SZO Series

OPTIKA SZO Series represents a very compact Greenough stereo microscope with 6.72:1 zoom and 110mm working distance for professional environments and laboratories which allows the observation of samples without any particular preparation, yet producing incredibly crisp and detailed images.

An extensive range composed by binocular and trinocular heads with 23mm field of view for a very wide peripheral view and comfortable posture even after several hours of operation. Trinocular heads enable simultaneous eyepiece and camera observation, opening new horizons and enabling a very practical and comfortable operation.

Discover how easily an enhanced accuracy and repeatability can be achieved thanks to the click-stop zoom for precise and repetitive observations.

An extremely wide stand selection gives the chance to create tailored stereomicroscope: choose among the several models available to cover every customers’ needs, in terms of illumination (including the state-of-the-art, exclusive X-LED³ incident light of 3.6W on selected models), arm extension (including overhanging stands) and focusing system. Special external illuminators and moving/heating stages are also available for specific applications.

Keep in my mind the application, always: if you are soldering a printed circuit board, it may be more important to have a long working distance; if you are counting items, then a large field of view will be of great assistance.



Related Literature:



Images are for illustrative purposes only

Greenough Optical System

The V-shape optical path of Greenough allows us to design a very compact and a slim unit,
highly versatile and appreciated for the 3D viewing. Samples with significant depth can be quickly
inspected. Binocular and trinocular heads are 45° inclined to grant comfortable posture to the
user even after several hours of operation.

Reliable crisp images, repetable zoom settings

Discover how easy is to obtain precise reproduction of magnifications, thus simplifying inspections and measurements.

Now, with SZO your observations are easier thanks to the 11-step click-stop system in the zoom which allows you to exactly set the magnification at the same level of the previous time.

Zoom control is greatly facilitated with no need of constantly look at the magnification knob.

Incredibly practical and comfortable, especially with cameras

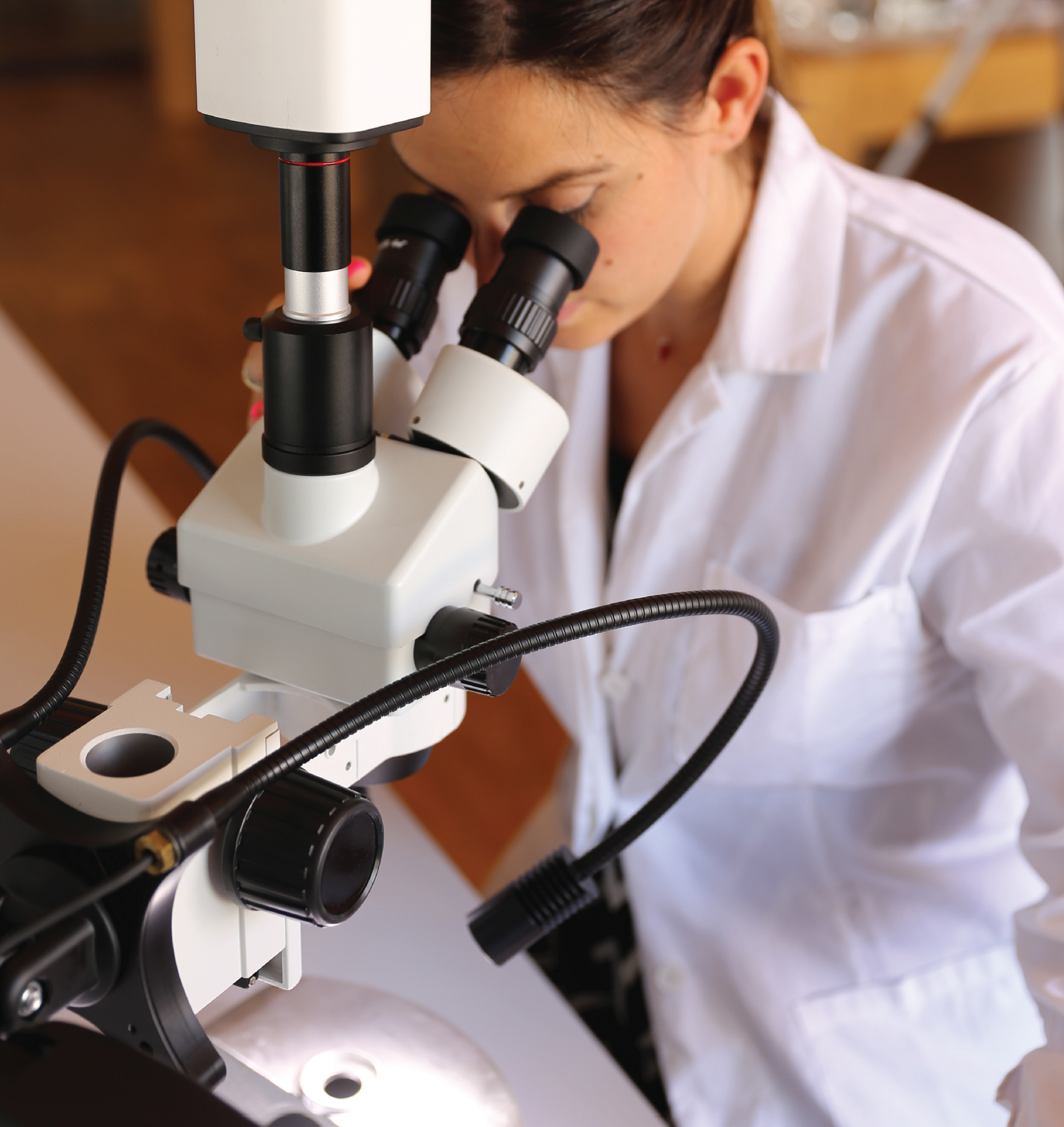

Trinocular heads enable simultaneous eyepiece and camera observation, opening new horizons and enabling a very practical and comfortable operation. Watch at the same time your specimen on a monitor and directly in the eyepieces, without any setting.

STEREOZOOM MICROSCOPES FOR ROUTINE INSPECTIONS X-LED³ EXCLUSIVE LIGHTING SOURCE

Special technology able to double the light intensity for incomparable performance,
ensuring constant pure-white colour temperature.
Relevant money & energy saving thanks to the incredibly low energy consumptions
allow you to cut the electricity bills by 90%!
On SZO-3, SZO-4, SZO-5, SZO-6.

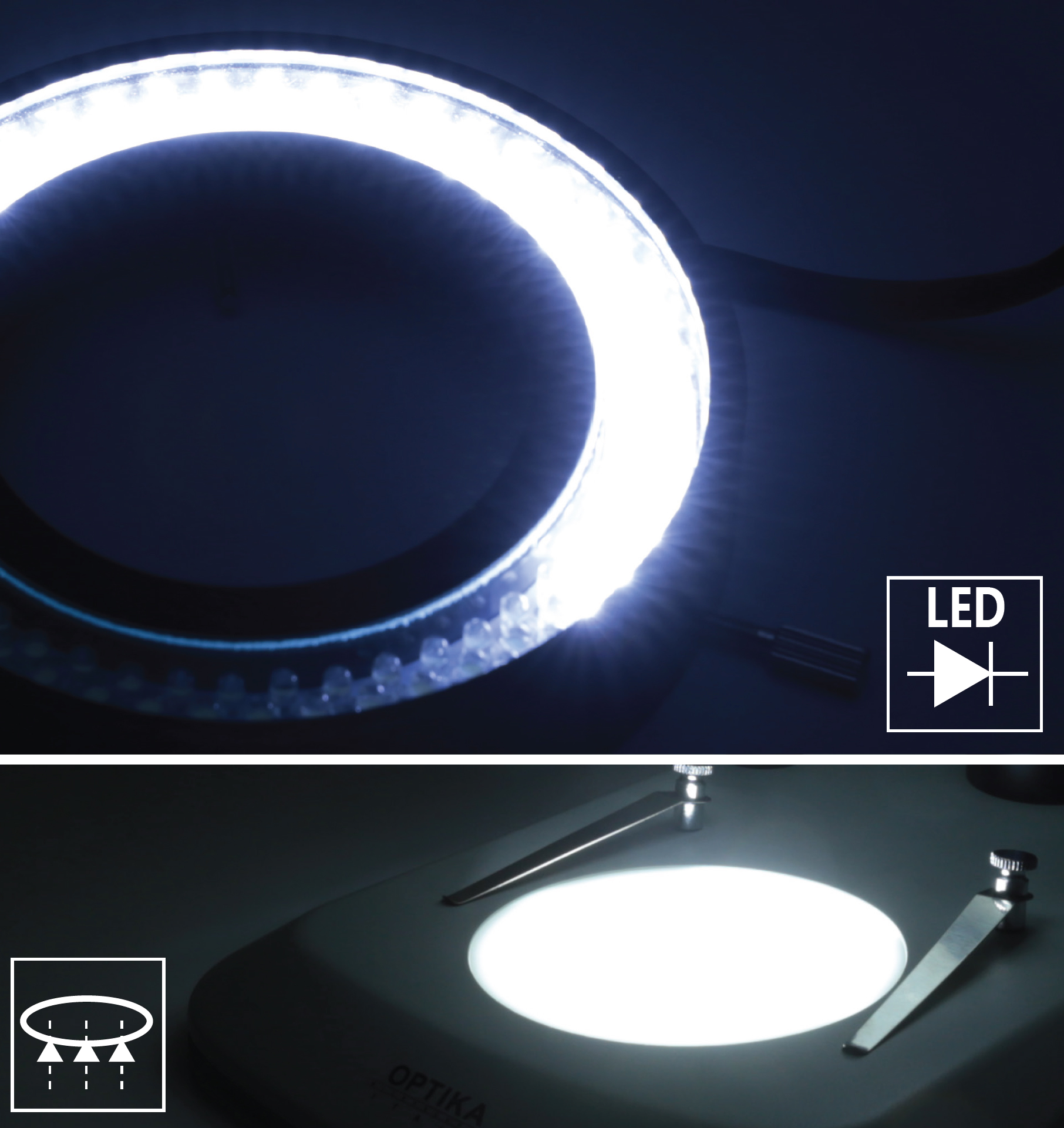

LED – OPTIMIZED ILLUMINATION

Money & energy saving thanks to LED long lifetime
(65.000 hours, 20 years in case of 8 hours/day)
which is more than 20 times compared to a standard halogen bulb.
LED illumination is available as transmitted light, cold light and ring light illuminators.
On SZO-3, SZO-4, SZO-5, SZO-6.

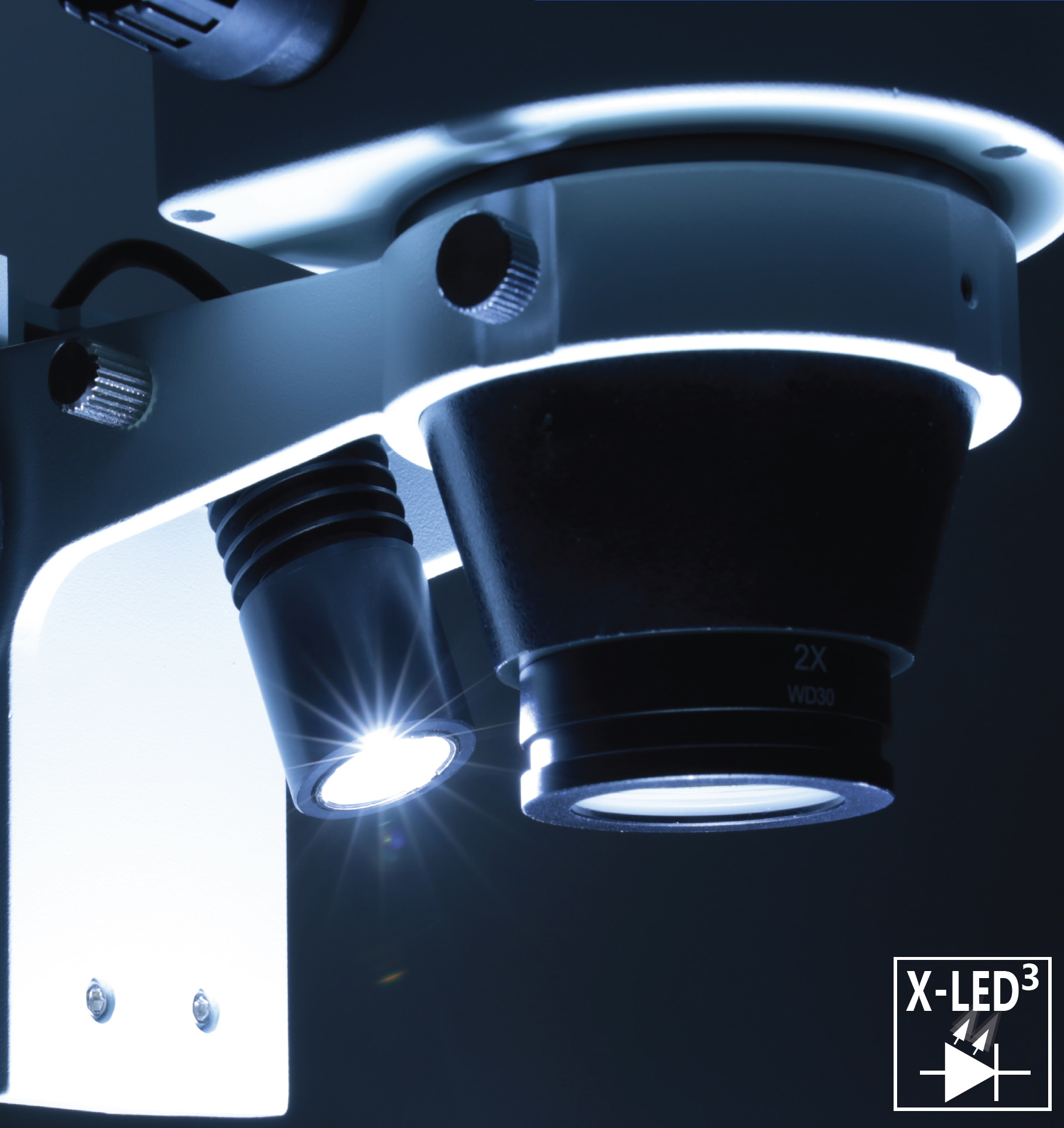

X-LED³ – EXCLUSIVE LIGHTING SOURCE

POWERFUL AND UNIFORM ILLUMINATION

» Best in class lighting tecnology
» Special technology able to double the light intensity
» Constant pure-white colour temperature

CUT ELECTRICITY BILLS BY 90%

» Unparalleled performance
» Incredibly low energy consumptions, only 3.6W
» Power equivalence to 50W halogen lamp

LED – OPTIMIZED ILLUMINATION MONEY & ENERGY SAVING

» LED long lifetime (65.000 hours, that means 20 years in case of 8 hours/day usage)
» No overheated surfaces
» Less than 10% of a standard halogen bulb consumption

MAKE SURE TO ACHIEVE THE BEST WORKING CONDITIONS

» Dedicated LED light for specific applications
» Stands with LED diffusing disc for transmitted illumination.
» Cold light and ring light LED illuminators

CLEAR, ACCURATE AND COMFORTABLE SAMPLE OBSERVATION

ULTRA-PRECISE EXAMINATION

» High-resolution images to observe details
» Bright and clear flat images
» Accurate colours reproduction

ENHANCE YOUR WORKING CONDITIONS

» Adjustable tilting tube and right posture ensure long operation
» Reduces back and neck fatigue a minimum
» Convenient front-access operation

6.72:1 ZOOM RATIO

SZO Series has 0.67x-4.5x zoom range (6.72:1 zoom ratio), being purposely designed for routine inspections.
This zoom ratio enables most samples to be observed at the appropriate magnifications.
When combined with proper accessories (2x additional lens and 20x eyepieces),
SZO delivers excellent image quality up to 225x.

OVERHANGING STAND, IN CASE OF LARGE SAMPLES

This stand is recommended for efficient, quick and precise observation and digital imaging of large samples,
that cannot be processed with regular stands. Achieve 360° rotation and smooth movement with no limits,
as the mechanism can be tilted from right to left, backward to forward.
On SZO-7, SZO-8, SZO-9, SZO-10.

LARGE WORKING DISTANCE AND FIELD OF VIEW SIZE ARE IMPORTANT!

If you need to work under the microscope, you will need a large working distance.
SZO Series ensures an extended working distance of 110mm compared to the standard
100mm and 23mm FOV to ensure a wide peripheral view.

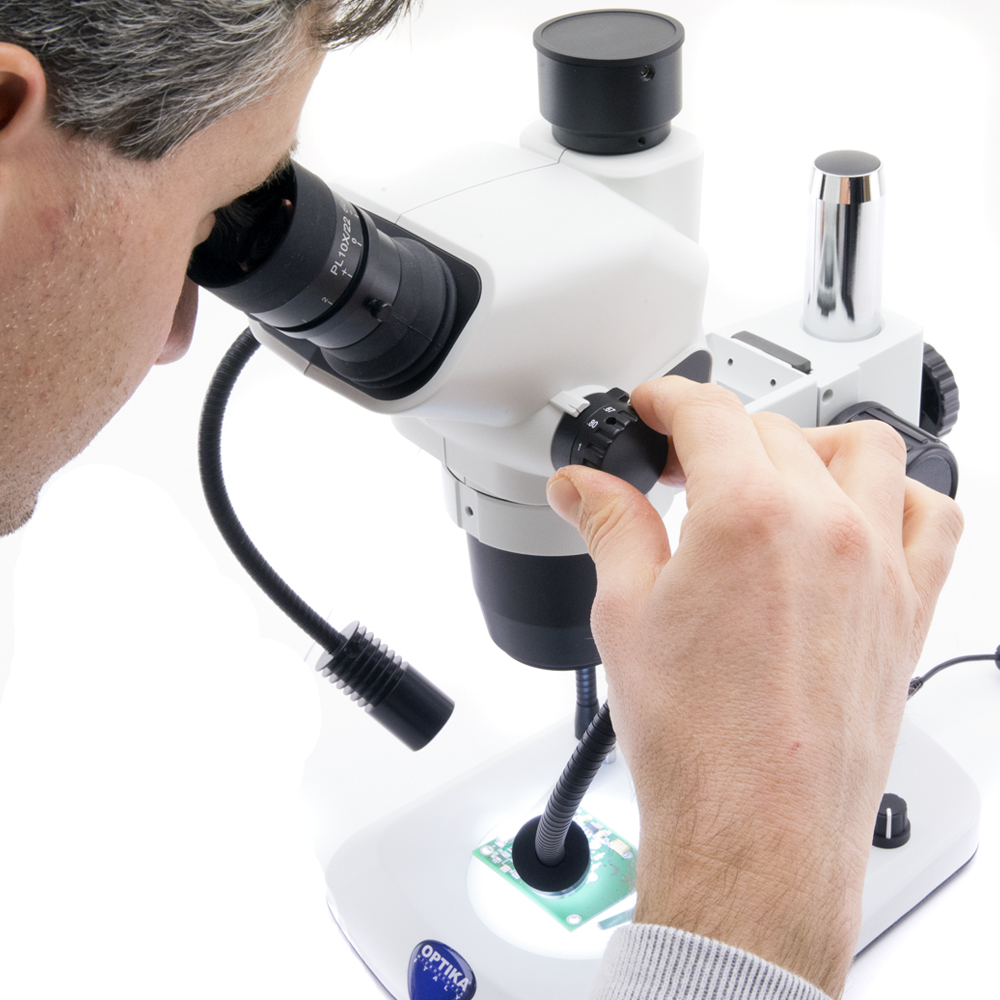

Keep in my mind your application, always: if you are soldering a printed circuit
board, it may be more important to have a long working distance; if you are counting
items, then a large field of view will be of great assistance.

SZO HEADS

SZO-B_models

Model: SZO-B


Greenough, binocular stereozoom head with 23mm FOV, pillar stand and ultra-flat base. Click-stop zoom with 6.72:1 ratio and 110mm working distance.
To be matched to a stand with focusing system.

SZO-T_models

Model: SZO-T


Greenough, trinocular stereozoom microscope for simultaneous eyepiece and camera observation with 23mm FOV, pillar stand and ultra-flat base. Click-stop zoom with 6.72:1 ratio and 110mm working distance. To be matched to a stand with focusing system.

line

SZO RANGE

SZO-1_models

Model: SZO-1


Binocular stereomicroscope with pillar stand and ultra-flat base. In case illumination is needed, choose from the wide choice of external illuminators available.

SZO-2_models

Model: SZO-2

Trinocular stereomicroscope with pillar stand and ultra-flat base. In case illumination is needed, choose from the wide choice of external illuminators available.

line
SZO-3_models

Model: SZO-3


Binocular stereomicroscope with pillar stand and ultra-flat base, illuminated stage with X-LEDT3 transmitted illumination and X-LED³ incident illuminator for outstanding brightness, freely settable.

SZO-4_models

Model: SZO-4


Trinocular stereomicroscope with pillar stand and ultra-flat base, illuminated stage with X-LEDT3 transmitted illumination and X-LED³  incident illuminator for outstanding brightness, freely settable.

line
SZO-5_models

Model: SZO-5


Binocular stereomicroscope with pillar stand and ultra-flat base, illuminated stage with X-LEDT3 transmitted illumination and X-LED³ incident double arm light for outstanding brightness, freely settable.

SZO-6_models

Model: SZO-6


Trinocular stereomicroscope with pillar stand and ultra-flat base, illuminated stage with X-LEDT3 transmitted illumination and X-LED³ incident double arm light for outstanding brightness, freely settable.

line
SZO-7_models

Model: SZO-7


Binocular stereomicroscope with extremely stable overhanging stand complete of head holder and focusing system for perpendicular observation of particularly large specimens…

SZO-8_models

Model: SZO-8


Trinocular stereomicroscope with extremely stable overhanging stand complete of head holder and focusing system for perpendicular observation of particularly large specimens…

line
SZO-9_models

Model: SZO-9


Binocular stereomicroscope with extremely stable, hinged and longb overhanging stand complete of head holder and focusing system for observation of particularly large specimens…

SZO-10_models

Model: SZO-10


Binocular stereomicroscope with extremely stable, hinged and long overhanging stand complete of head holder and focusing system for observation of particularly large specimens…

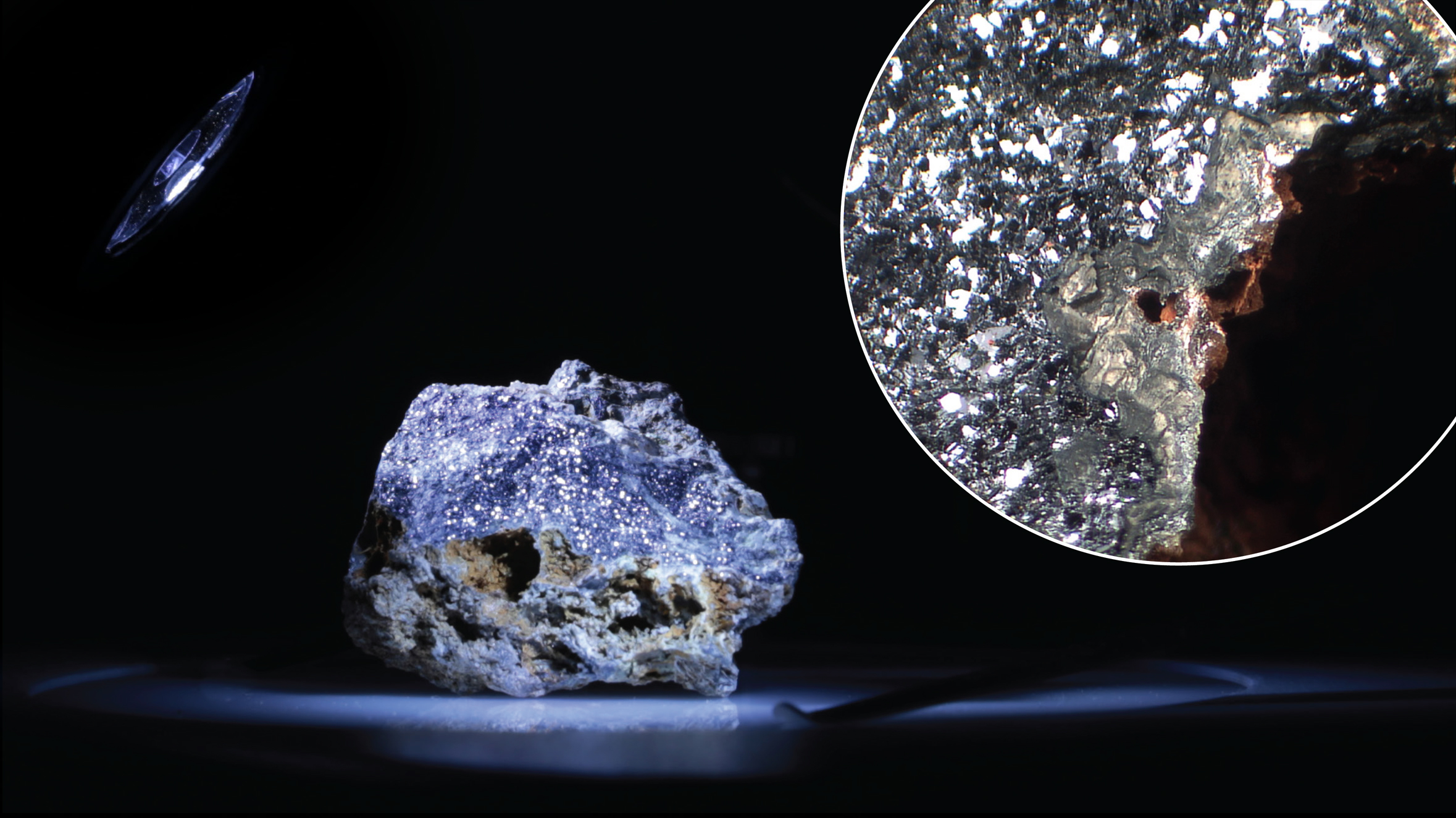

Some application examples demonstrating the versatility of SZO series. Applications in industrial and research are extremely facilitated by the advanced functionality offered.
