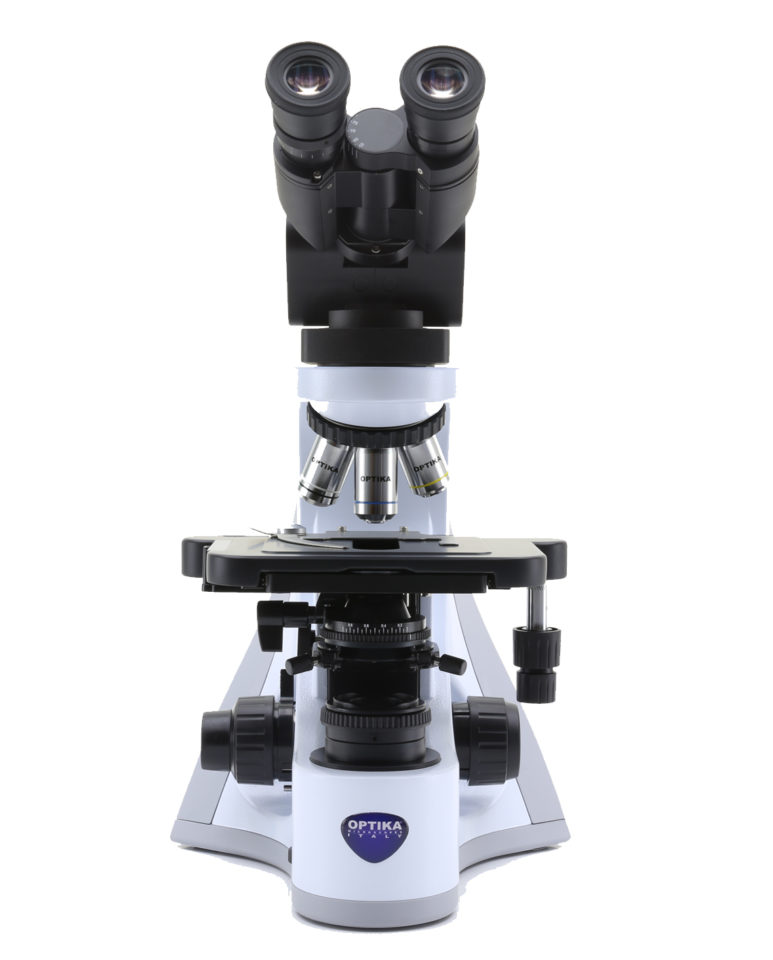

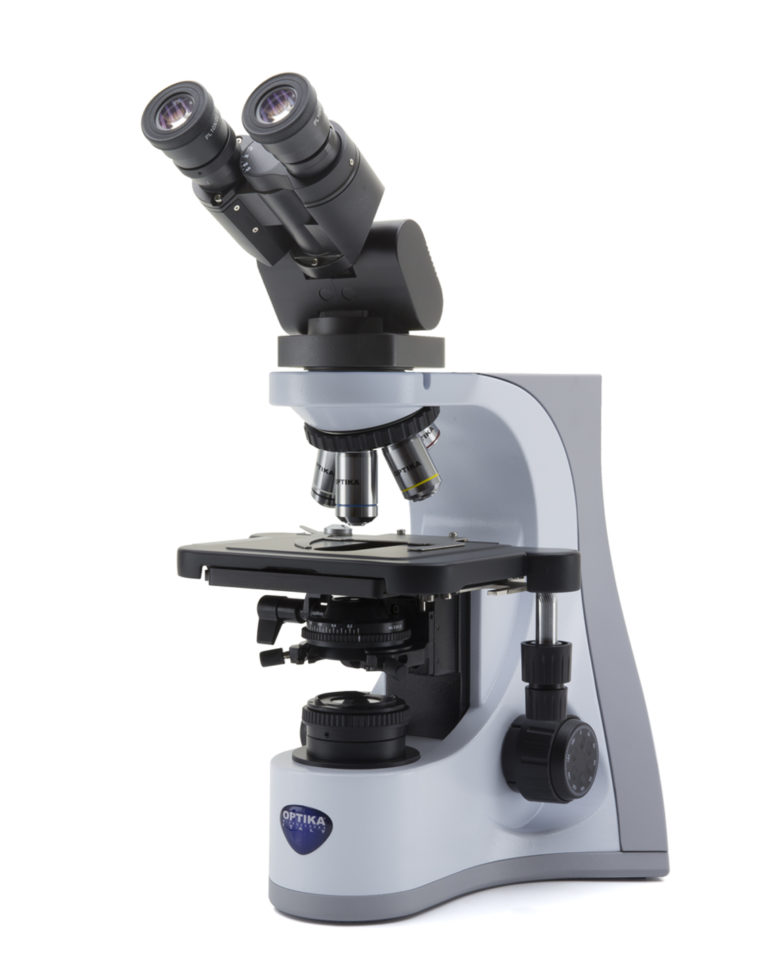

Binocular observation Ergo head, inclined 30° – 60° and rotatable 360°
PL 10x/22, High Eyepoint
Quintuple revolving nosepiece
IOS W-PLAN 4x, 10x, 40x, 100x
Double layer, 233×147 mm, moving range 78×54 mm, Belt-drive in X direction
Coaxial coarse and fine, limit stop
Light source: X-LED3, light intensity control using a knob on left side of the frame.
Köhler illumination system with Field Diaphragm.
