SZP Series

CMO microscope series equipped with ergonomic and non-ergonomic binocular heads, field 24 and a working distance of 80mm. The series also includes an epi-fluoscence attachment for biology, botany, electronics, materials and forensic analysis, equipped with a 100W mercury lamp.
The series is completed by the bases equipped with LED lighting with transmitted light and incident with adjustment of the light intensity.



Related Literature:





Images are for illustrative purposes only

Greenough Vs. CMO Stereo Microscopes

The Greenough design, introduced in the early twentieth century,
consists of two identical, symmetrical optical systems each
containing a separate eyepiece and objective, arranged in careful
alignment with a single housing. The two optical paths are
arranged at a precise angle, due to which they converge to the
point that determines the working distance and thus the focal
length. This design allows high numerical apertures because the
objectives are very similar to those used in compound microscopes.
The lower section of the microscope contains the objectives,
while the upper end of the body tubes projects an image to the eyes.
CMO (Common Main Objective) stereo microscopes have the ability to collect more light than the
Greenough design and feature greater optical aberration correction.

CMO Stereozoom Microscopes

CMO stereo microscopes, unlike Greenough stereo microscopes, are by definition instruments
whose optics are infinity corrected. This allows you to easily introduce accessories
such as beamsplitters or aperture diaphragms thanks to which you can get a greater depth
of field.

Get the most out of our accessories

ST-172 – Iris diaphragm module
With this accessory, the depth of field of the final image can be adjusted,
for applications where different planes all in focus are needed.

SZP heads

SZP-6_model

Model: SZP-6


CMO (Galilean)binocular stereozoom head with large field number (24mm), continuously adjustable zoom with 6.25:1 zoom ratio and 80mm working distance.

SZP-8_model

Model: SZP-8


CMO (Galilean), binocular stereozoom head with large field number (24mm), continuously adjustable zoom with 8:1 zoom ratio and 80mm working distance.

SZP-10_model

Model: SZP-10


CMO (Galilean), binocular stereozoom head with large field number (24mm), continuously adjustable zoom with 10:1 zoom ratio and 80mm working distance.

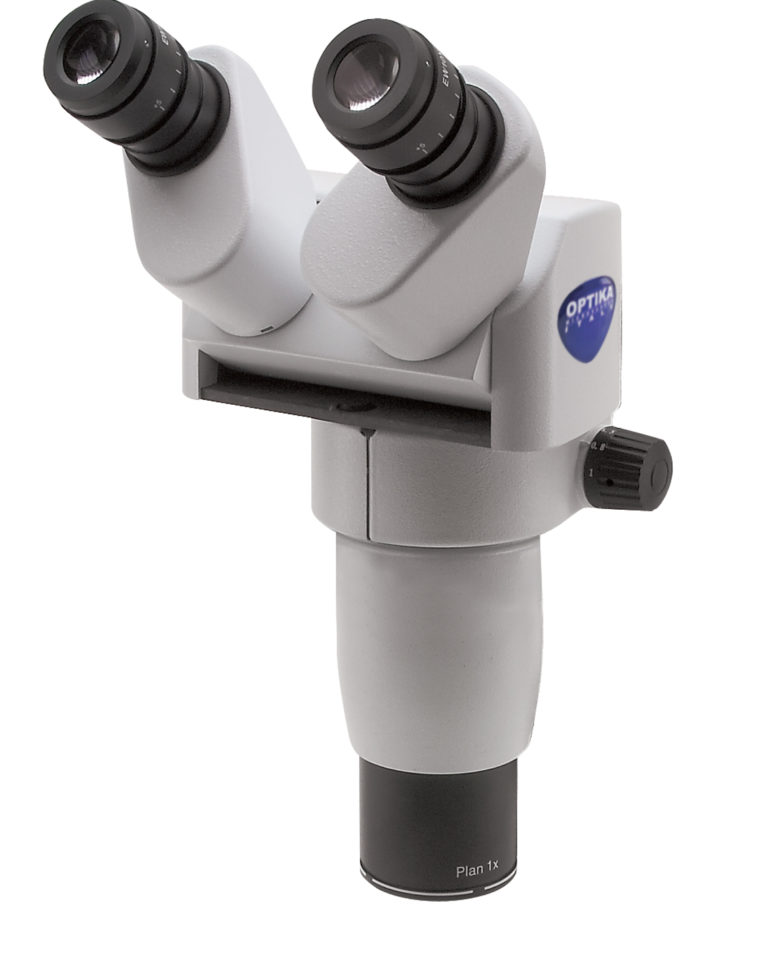

SZP-6ERGO_model

Model: SZP-6e


CMO (Galilean), binocular stereozoom ergonomic head ensuring ultra-comfortable body posture, with a settable inclination 0-35°, diopter adjustment on both the eyepieces and 6.25:1 zoom ratio.

SZP-8ERGO_model

Model: SZP-8e


CMO (Galilean), binocular stereozoom ergonomic head ensuring ultra-comfortable body posture, with a settable inclination 0-35°, diopter adjustment on both the eyepieces and 8:1 zoom ratio.

SZP-10ERGO_model

Model: SZP-10e


CMO (Galilean), binocular stereozoom ergonomic head ensuring ultra-comfortable body posture, with a settable inclination 0-35°, diopter adjustment on both the eyepieces and 10:1 zoom ratio.

line

SZP-FL - Epi-Fluorescence Attachment

SZP-FL_model

Model: SZP-FL


Attachment for fluorescence applications for SZP stereomicroscopes only.
Used in many applications like biology, botany, electronics, materials, forensics. Equipped with HBO 100W mercury lamp illuminator.
To be combined with any SZP model.

line

SZP Stands

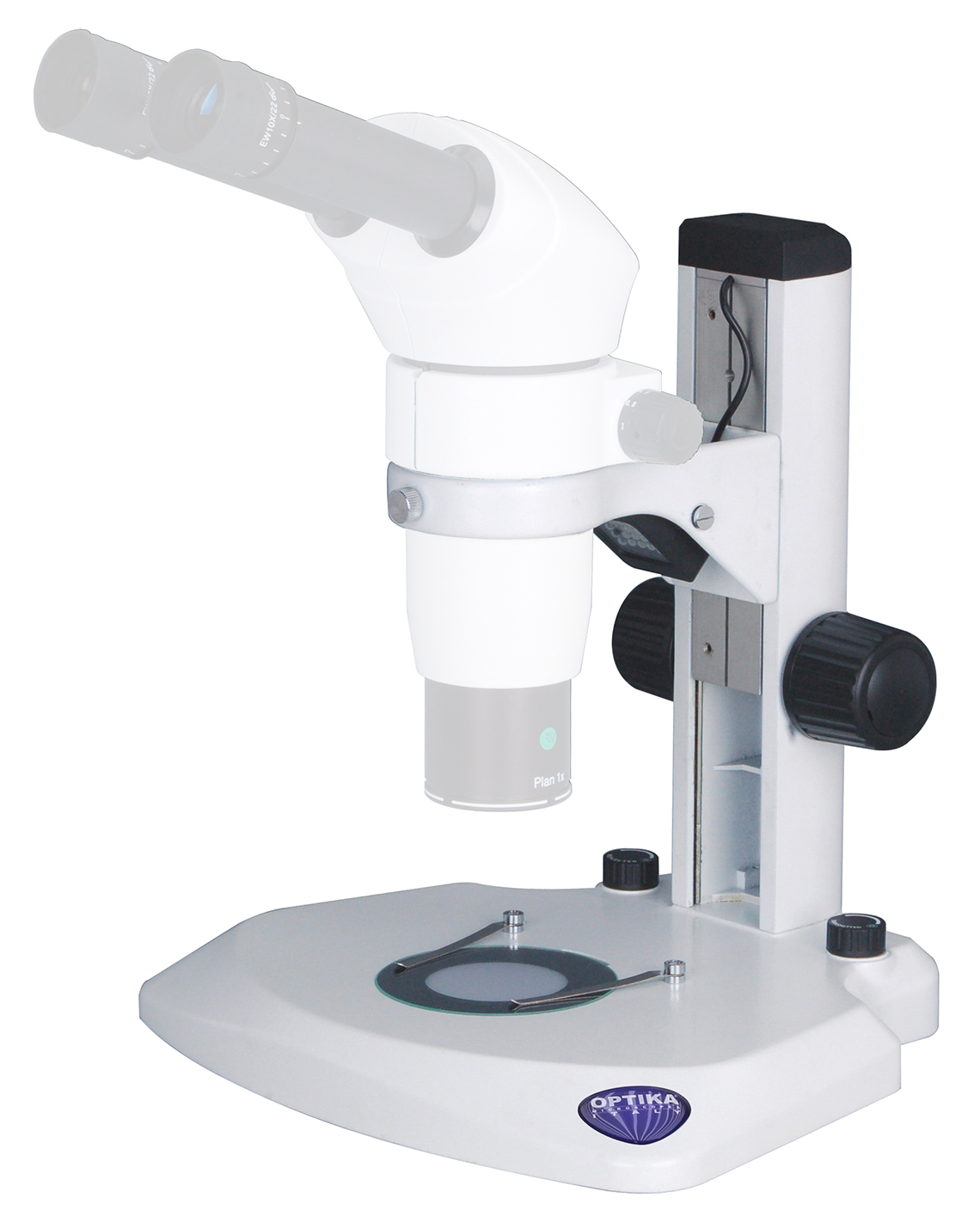

ST-155_model

Model: ST-155


Modern, large plain stand equipped with LED transmitted and incident illumination, both with intensity control. It comes complete of head holder and focusing mechanism.
Base size: 330×285 mm. Height: 38 mm. Fixed arm height: 340 mm.
Head not included.

ST-156_model

Model: ST-156


Modern, large plain stand equipped with LED transmitted and incident illumination, both with intensity control. It comes complete of head holder and coaxial coarse and fine focusing system. Base size: 330×285 mm. Height: 38 mm. Fixed arm height: 340 mm. Head not included.
