CL Series

Most of the time, it is of fundamental importance to combine a stereomicroscope with the right accessories, including illuminators.
Sometimes and in some specific fields, the light has to be directed in a certain direction to achieve the best working conditions possible; therefore external illuminators are recommended to match every requirement.
OPTIKA offers several solutions with different lighting power.



Related Literature:





Images are for illustrative purposes only

HIGH-POWER SEGMENT ILLUMINATION

CL-16.1 consists in a professional lighting system of 144 LEDs (2W total power) for enhanced light uniformity and brightness.
The ring light illumination is divided into 4 different zones, individually adjustable for selectable light zones.
The separated, external control panel prevents interferences during use, whilst the sturdy metal structure makes it more durable and resistant.

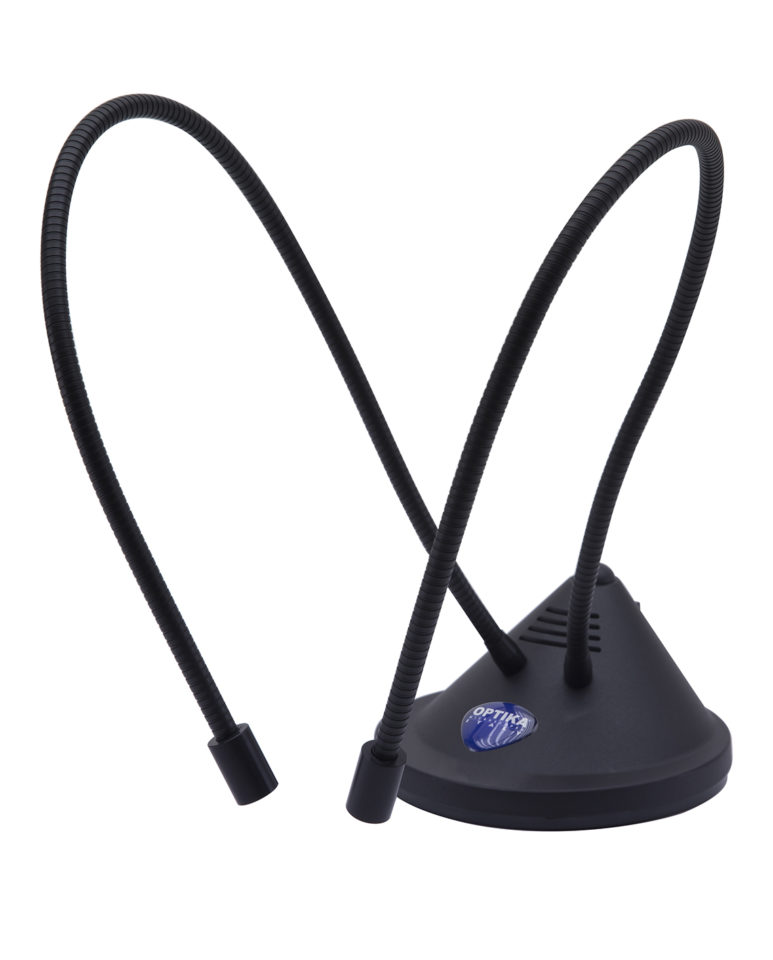

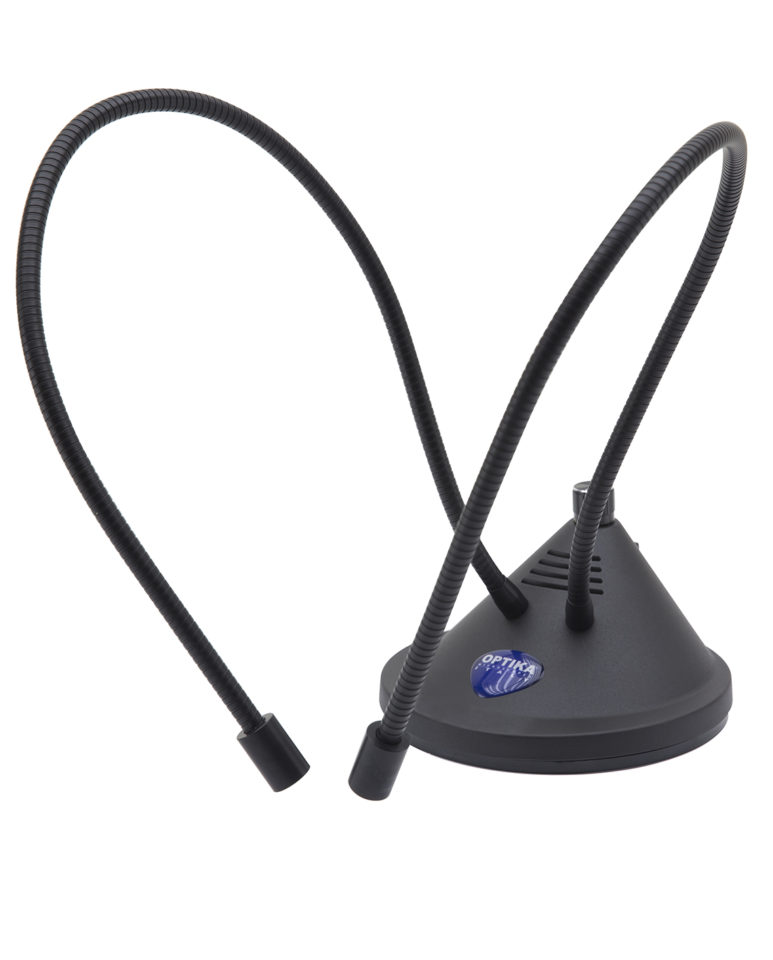

DOUBLE-ARM ILLUMINATORS

A wide range of flexible arm illuminators provides flexibility
and speed in getting the best clarity out of your sample.

ULTRA-POWERFUL COLD LIGHT ILLUMINATION

Needing a particularly bright light source ?
The extremely efficent 14W LED system brings external illuminators to a step forward.
The 1.000 lumen optical power source unit has to be combined with an arm guide to drive the light properly to the specimen.
Multifunctional, sturdy, extremely stable and with brightness adjustment.

ROTATING RING-LIGHT ILLUMINATOR

Thanks to the rotating ring connector, CL-14 can turn after being installed on the head of the stereomicroscope, providing a valuable feature especially when viewing large samples that may interfere with the standard position of ring light illuminators.

CLD-01_models

Model: CLD-01


Flexible and professional cold light illuminator with high power,
extra-efficiency 14W LED system, extremely bright and uniform.
Optical power: >1000 lumen.
Color temperature: pure white 6,300 K.
Brightness control potentiometer, external power supply.

line
CL-11.1

Model: CL-11.1


Double-arm guide for CLD-01, with focusing lenses. Arm length 500 mm. Each arm fitted with focusable lens adapter.
Illuminance (at 10 cm distance): 100.000 lux

CL-12

Model: CL-12


Ring optical fiber guide for CLD-01. Lenght 700 mm, diameter 16 mm.
The circular end is suitable for all series, by using the three locking screws. Diameter of the fixing ring: 55 mm. Illuminance (at 10 cm distance): 40,000 lux.

line
CL-32_model-montato

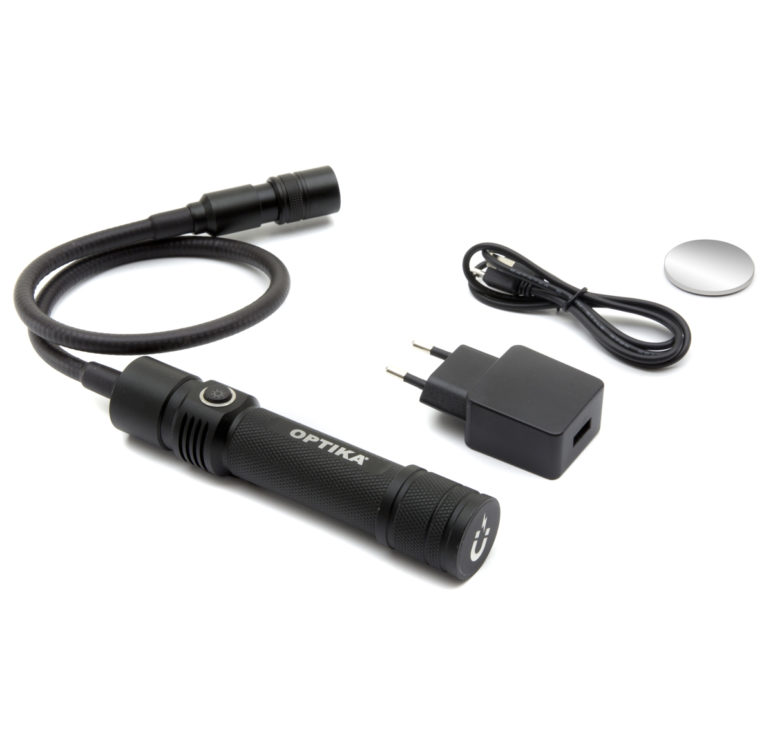

Model: CL-32


Arm illuminator with magnetic fixing plate, USB powered.
Light sources: LED; With 2W high efficiency LED.
Color temperature: pure white 6,300 K;
Luminous flux: 200 lm;
Illuminance: 20,000 (on 5 cm diameter).

CL-33_model-montato

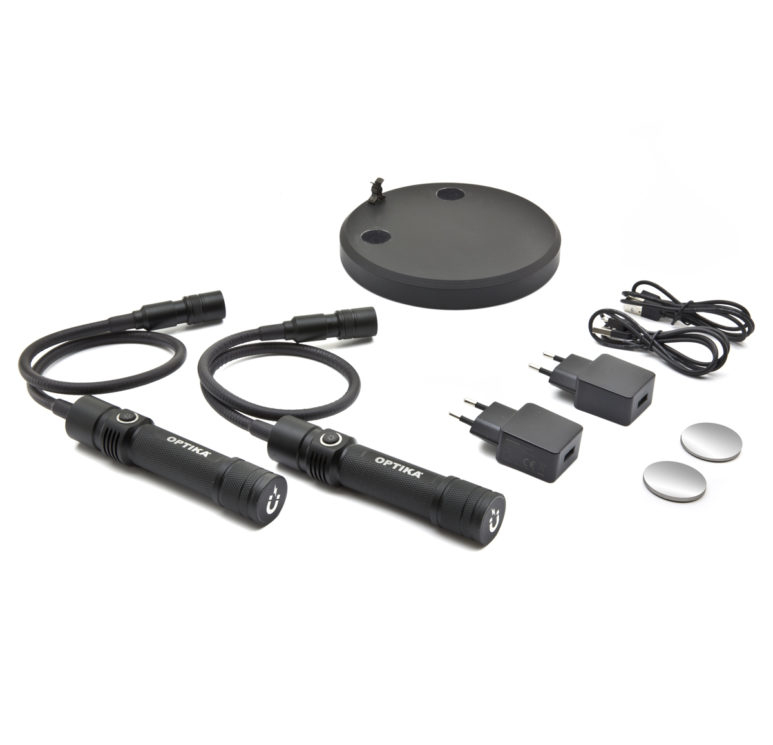

Model: CL-33


Pair of arm illuminators with magnetic fixing plates, metal base, USB.
Light sources: LED; With 2W high efficiency LEDs.
Color temperature: pure white 6,300 K;
Luminous flux: 200 lm (x2);
Illuminance: 20,000 (on 5 cm diameter) (x2).

line
CL-41_model

Model: CL-41


Double-arm X-Led3 illuminator, with brightness control.
Light sources: With 3,6 W high efficiency X-LED3.
Color temperature: pure white 6,300 K;…

CL-14_models

Model: CL-14


56-LED ring light illuminator, with brightness control.
Compact, with 360° rotating ring connector.
Illuminance (at 10 cm distance): >8,000 lux…

line
CL-16.1_model

Model: CL-16.1

Professional lighting system including 144 LEDs (2W total power) for enhanced light uniformity and brightness.
The ring light illumination is divided into 4 different zones, individually adjustable for selectable light zones

CL-18_models

Model: CL-18

Professional lighting system including 96 LEDs for enhanced light uniformity and brightness, and built-in rotating polarizing filter and analyzer filters for complete polarization, ideal to reduce glares and reflections when viewing metallic parts. Provided with on-board intensity level adjustement…
