IM-3 Series


Inverted microscopes are useful for observing living cells or organisms at the bottom of a large container (e.g., a tissue culture flask) under more natural conditions than on a glass slide, as is the case with a conventional microscope.

IM-3 Series includes a version for simultaneously brightfield and phase contrast method, engineered and designed to be your ideal solution for fast and reliable routine inspections.

The glass stage surface allows an optimal visual access to the objective turret.
A particularly simple and ingenious optical design allows stable alignments and smooth and accurate movements.



Related Documents:



Images are for illustrative purposes only

Your Preferred Inverted Microscope For Routine Applications

INTUITIVE, EASY USE FOR ALL LEVELS OF EXPERIENCE

» Ergonomic controls for fast and efficient investigations
» Excellent optics with high numerical aperture for brilliant images
» Compact footprint to save space

FAST, EFFICIENT INVESTIGATIONS

» Best-in-class LED illumination
» Easy to use aperture diaphragm to adjust your brightfield view
» Bright images also with light-demanding techniques as phase contrast

Adjust It To Your Individual Needs

DESIGNED TO FACILITATE YOUR DAILY ROUTINE

» Removable condenser to increase the working distance (up to 150 mm)
» Easy set-up of phase contrast with pre-centered slider
» Contemporary ergonomic design

EXTEND YOUR COMFORT WITH OPTIONAL ACCESSORIES

» Mechanical stage with X-Y translation
» More space on the stage with load-bearing side extensions
» Interchangeable metallic inserts for slides, Petri dishes and flasks

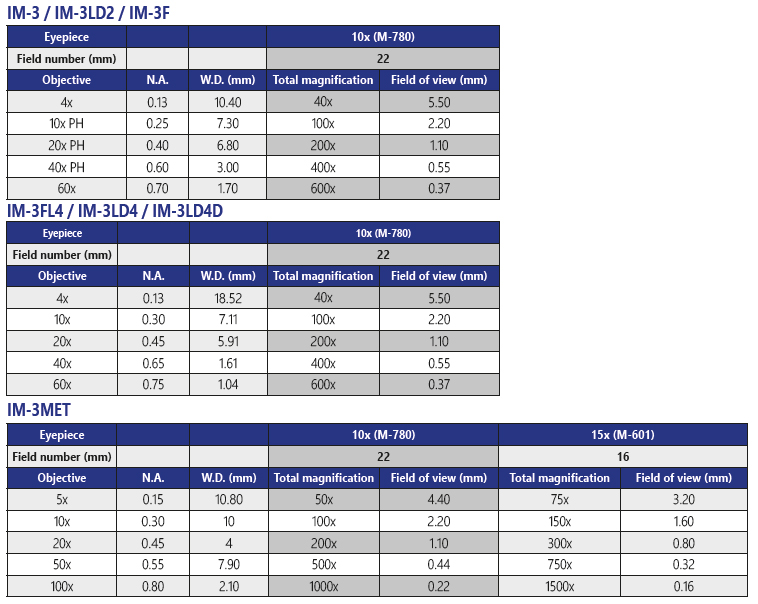

Improved Optical Performance, Long Working Distance

EXCELLENT CONTRAST & RESOLUTION

» Comprehensive range of objectives for extended versatility
» Full chromatic correction and field planarity for 22mm field
» Enhanced image quality, high contrast and brightness

OBSERVE EVEN THE MOST COMPLEX SAMPLES

» All models equipped with Infinity-Corrected IOS optics
» Phase contrast objectives for examination of transparent samples
» High-quality dry objectives for material science applications

Stay Connected With Your Specimen

EASY INTEGRATION WITH DIGITAL WORLD

» Trinocular head with photo ports, activated with a touch of a lever
» Complete range of adapters for all kinds of camera
» Image fidelity thanks to pure white LED illumination

SOFTWARE TO SIMPLIFY YOUR WORKFLOW

» Effective image capturing and live videos
» Get fast, user-friendly, high resolution imaging
» Annotate your images and measure distances

X-LED8 Exclusive Lighting Source

X-LED8 illumination system is based on a pure white high-efficiency LED and a special optics.
It guarantees constant color temperature (6300K) for all intensity levels, no heat generation, and
extreme electrical comsumption efficiency. The whole system is pre-aligned and has a lifetime of
50,000 hours.

X-LED8 – Exclusive Lighting Source

POWERFUL AND UNIFORM ILLUMINATION

» Unmatched colour fidelity and brightness of your specimen
» Special technology able to double the light intensity
» Constant pure-white colour temperature, 6300K

CUT ELECTRICITY BILLS BY 90%

» Money & energy saving
» Low power consumption, only 8 W
» LED long lifetime (50,000 hours = 20 years at 8 hours/day usage)

Significant Time And Money Saving

The IM-3 Series has been designed to increase comfort and achieve exclusive benefits, especially in terms of time saving with quick and intuitive installation, pre-aligned phase contrast system and pre-aligned LED light source.
As time is money, these features bring to a drastic impact on cost reduction, even more evident thanks to the exclusive illumination system provided by OPTIKA.

The Widest Specimen Area Available (22mm Field Number)

The F.O.V. (field of view) of IM-3 Series is based on a very comfortable diameter of 22 mm. A natural and easy view is ensured, especially when typically required in a laboratory environment.

Brightfield & Phase Contrast Microscope

IM-3_models

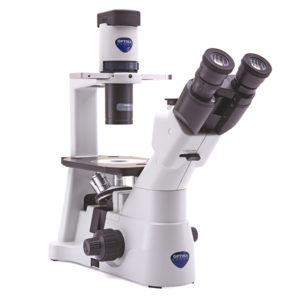

Model: IM-3


IM-3 looks at the challenge of the future with confidence, offering first-class optical quality and mechanical versatility, to extend its use with several accessories. Ensuring top-level brightfield and phase contrast observation, as it comes with a set of 3 IOS LWD W-PLAN PH objectives (10x, 20x and 40x). The high-efficiency X-LED8 makes it reliable for all transmitted light observations. For a more complete solution, choose among the several accessories available (objectives, translating stage, side extensions, holders and stage inserts).

HBO Fluorescence Microscope

IM-3F_model

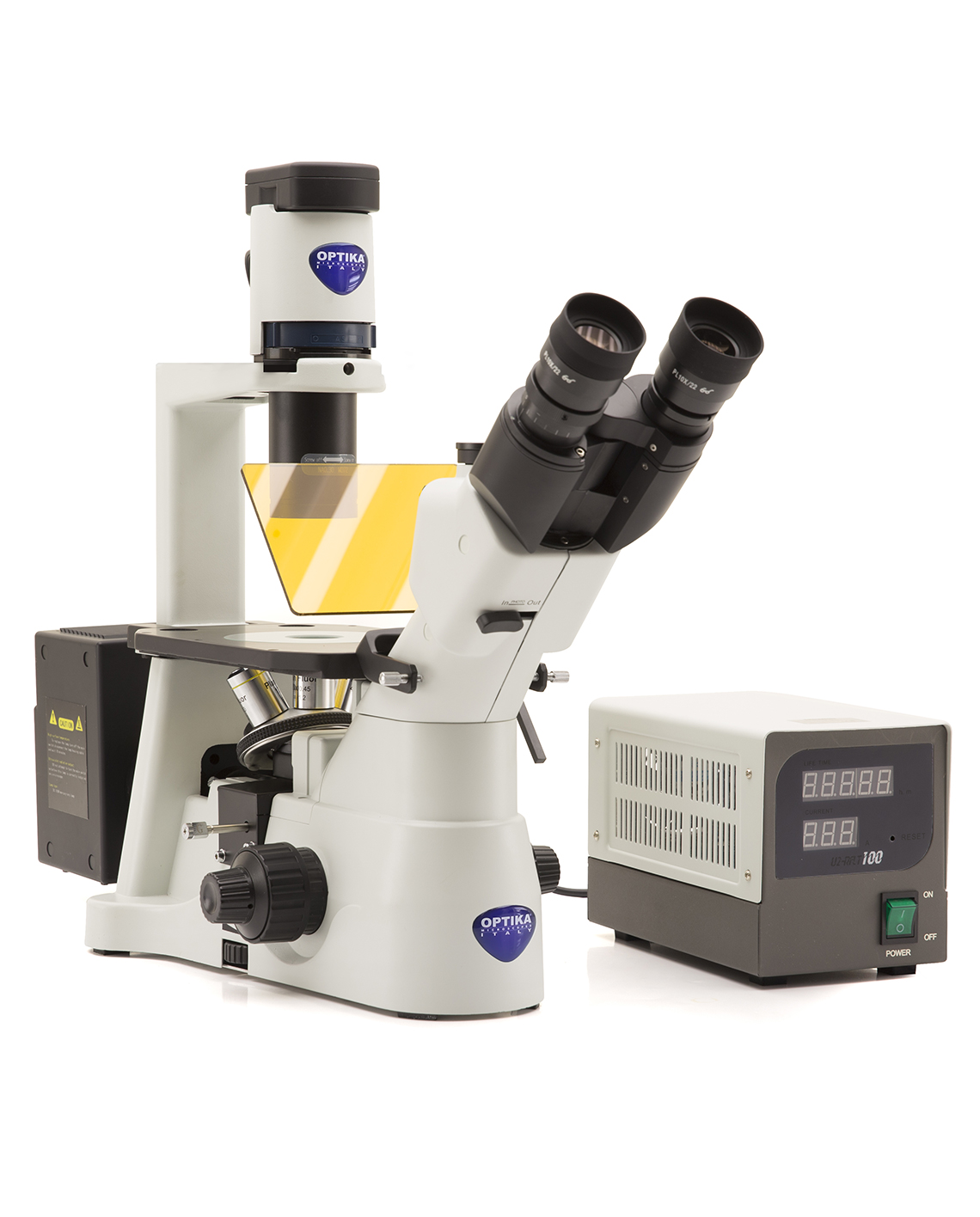

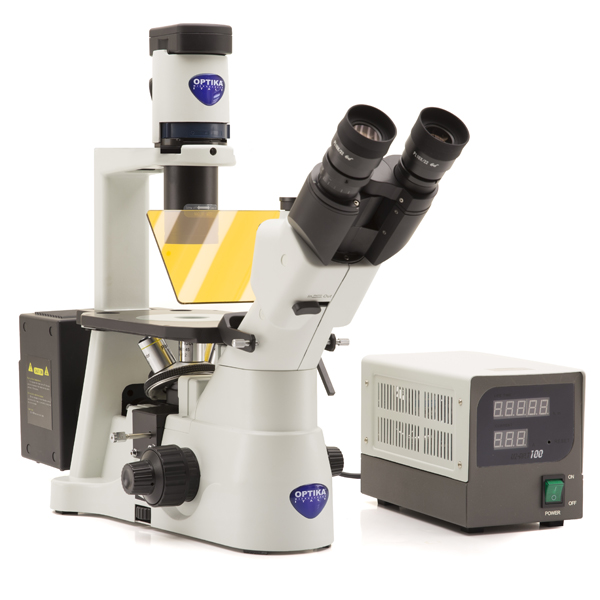

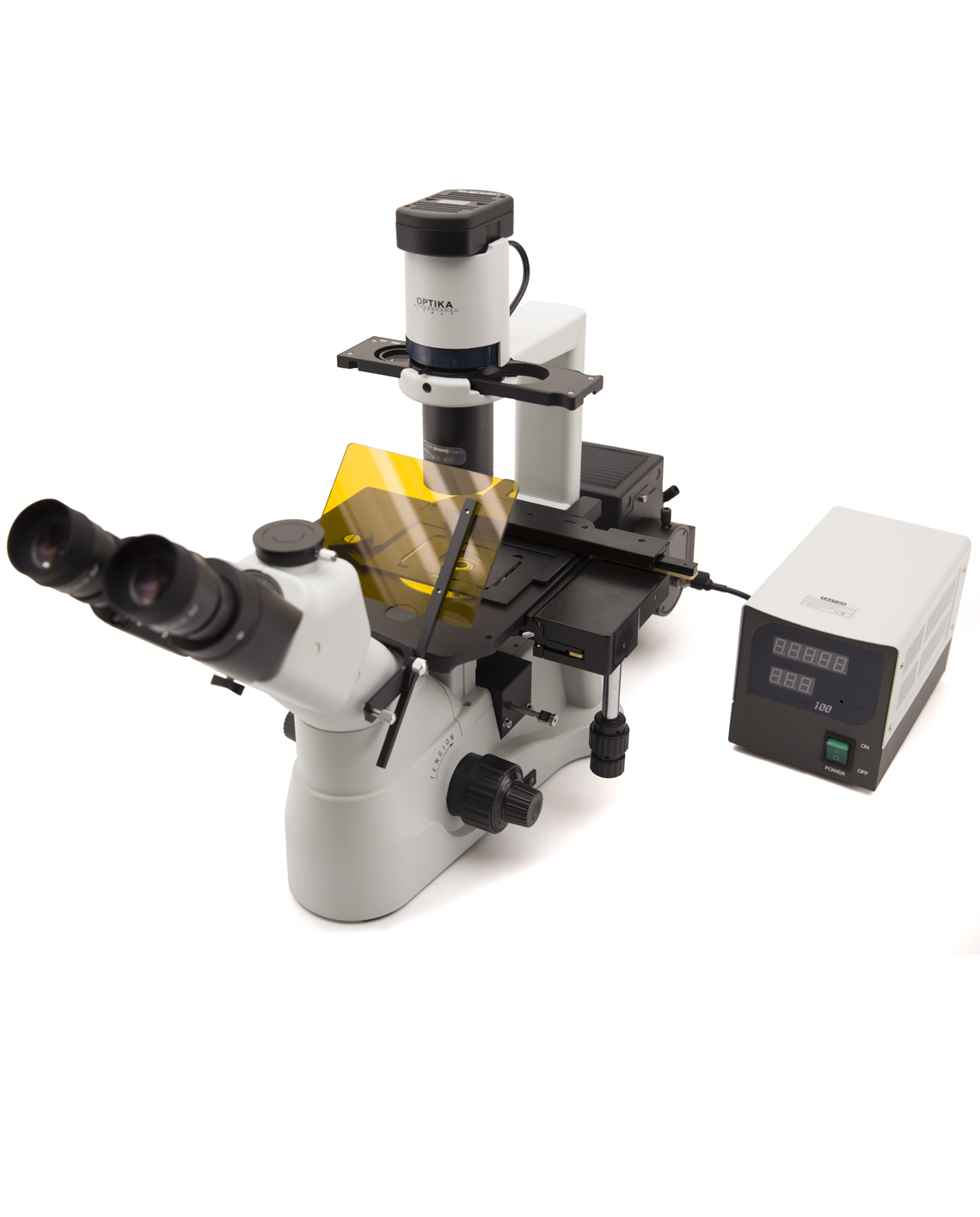

Model: IM-3F


Routine inverted fluorescence microscope for transmitted brightfield, phase contrast and fluorescence observations with IOS LWD W-PLAN objectives. The HBO fluorescence illuminator is combined with blue and green excitation filter set for the visualization of the following fluorochromes: Acridine Yellow, Acridine Orange, Auramine, DiO, DTAF, FITC, GFP, YFP, etc. (blue) plus Rhodamine, Texas Red and TRITC (green). Transmitted light through the exclusive X-LED8 to ensure great-looking, rich and high-quality specimen view.

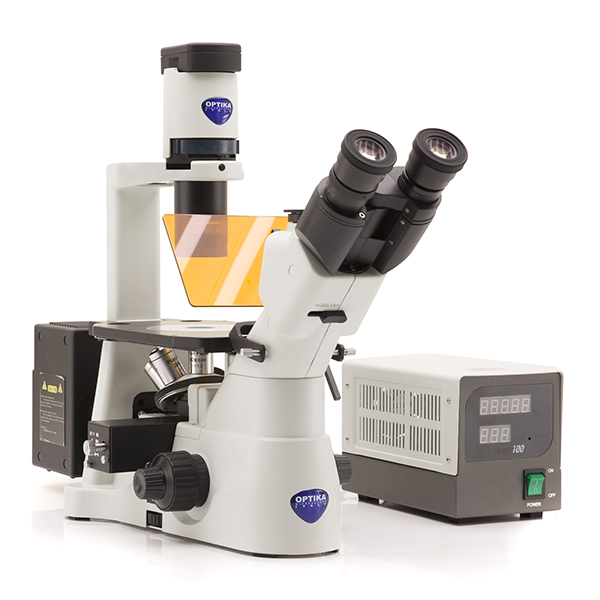

IM-3FL4_model

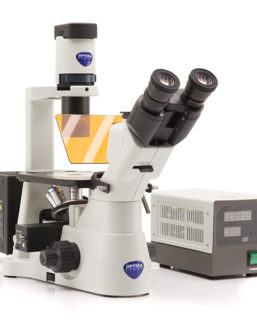

Model: IM-3FL4


Advanced inverted microscope for brightfield and fluorescence observations with Semi-Apo IOS LWD U-PLAN F objectives to enhance the visibility of the sample and increase the overall contrast. The HBO fluorescence illuminator provides an outstanding flexibility of use, standing the blue and green filter sets (supplied as standard) for Auramine, FITC, GFP and YFP (with blue filter set) plus Rhodamine, Texas Red and TRITC (with the green one), yet giving the possibility to combine any other specific filter sets for future upgrade. Transmitted light through the exclusive X-LED8 to ensure great-looking, rich and high-quality specimen view.

LED Fluorescence Microscope

IM-3LD_models

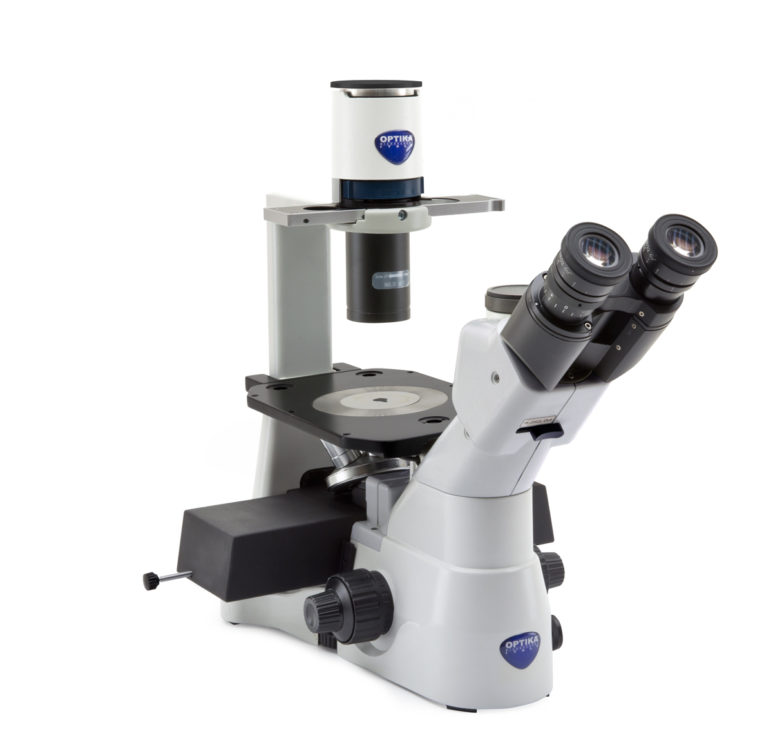

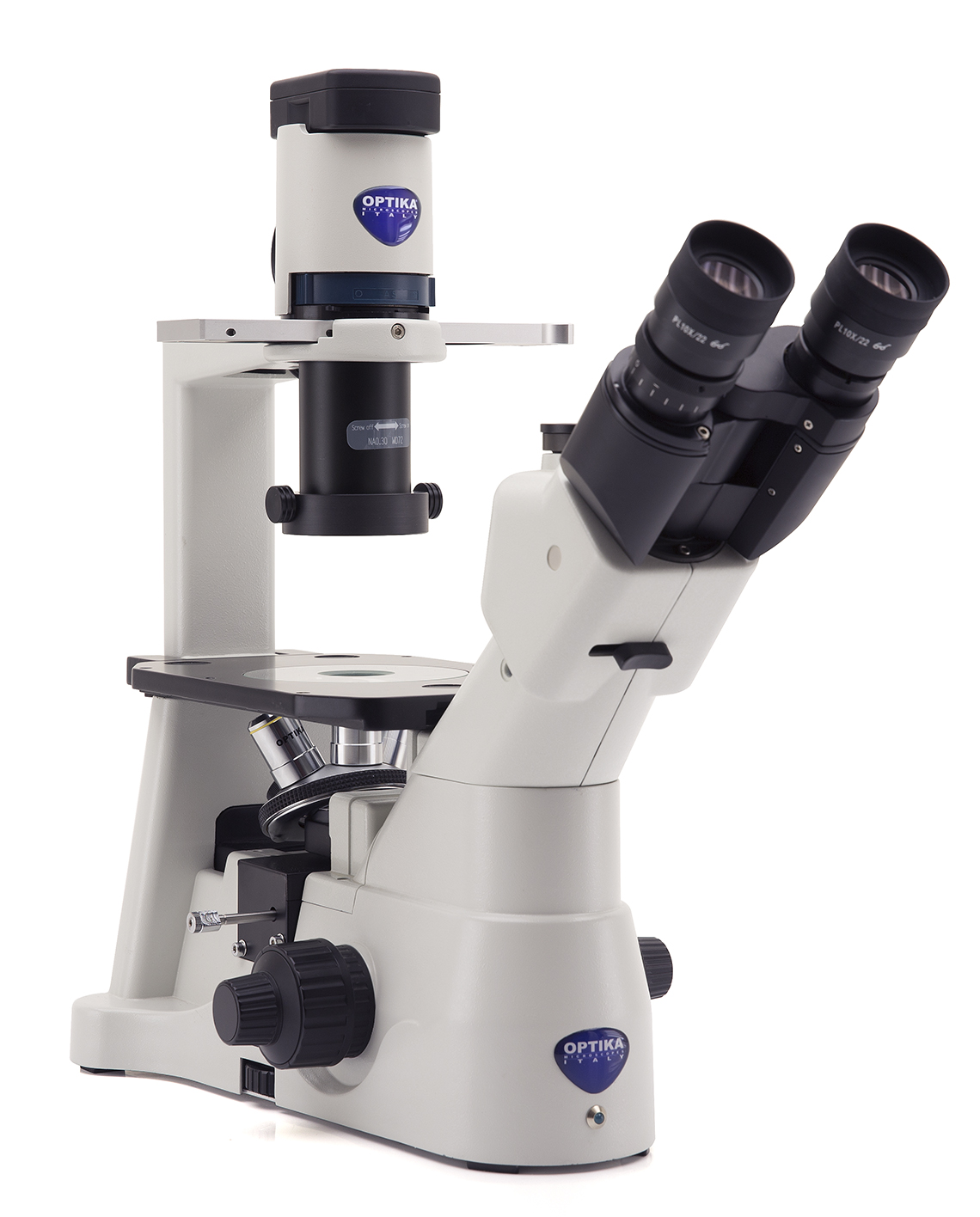

Model: IM-3LD


Routine inverted fluorescence microscope for transmitted brightfield, phase contrast and fluorescence observations with IOS LWD W-PLAN PH objectives. The LED fluorescence illuminator is combined with blue and green excitation filter set for the visualization of the following fluorochromes: Acridine Yellow, Acridine Orange, Auramine, DiO, DTAF, FITC, GFP, YFP, etc. (blue) plus Rhodamine, Texas Red and TRITC (green). LED fluorescence ensures unparalleled convenience eliminating warm-up/cool-down times and all the inconveniences related lamp replacement and adjustment. Transmitted light through the exclusive X-LED8 to ensure great-looking, rich and high-quality specimen view.

Metallurgical Microscope

IM-3Met_models

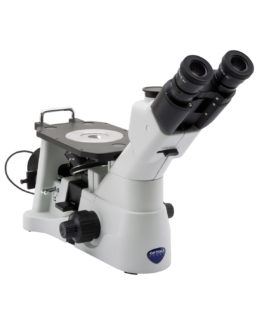

Model: IM-3MET


Routine inverted microscope with IOS LWD U-PLAN MET objectives for material science and metallographic applications, combining a sturdy yet compact structure with dedicated components required in this field, like the NCG (no cover glass) objectives working without cover slide ideal for metallographic samples and other opaque specimens. A particularly simple and ingenious optical design allows stable alignments and smooth and accurate movements.

line



Some application examples demonstrating the versatility of IM series. Routine applications are extremely facilitated!
