SZP

OPTIKA SZP Series are CMO (Common Main Objective, or Galilean) stereozoom microscopes generally used for complex applications requiring high resolution with advanced optical and illumination features, being a professional solution offering greater light-gathering power than Greenough-type and more highly corrected for optical aberration.

Choose the most suitable zoom ratio among 6.25:1, 8:1 or 10:1, with the possibility to have the ergonomic head for additional comfort.

An extremely wide stand selection gives the chance to create tailored stereomicroscope: choose among the several models available to cover every customers’ needs, in terms of illumination (including the state-of-the-art, exclusive X-LED³ incident light on selected models), arm extension (including overhanging stands) and focusing system.
Special external illuminators and moving/heating stages are also available for specific applications.



Related Literature:





Images are for illustrative purposes only

CMO (Galilean) Optical System

Generally used for more complex applications requiring high resolution with advanced optical and illumination features, it is a professional solution, with greater light-gathering power than Greenough-type and more highly corrected for optical aberration.

CLEAR, ACCURATE AND COMFORTABLE SAMPLE OBSERVATION

ULTRA-PRECISE EXAMINATION

» High-resolution images to observe details
» Bright and clear flat images
» Accurate colours reproduction

ENHANCE YOUR WORKING CONDITIONS

» Adjustable tilting tube and right posture ensure long operation
» Reduces back and neck fatigue a minimum
» Convenient front-access operation

SUPER ZOOM RATIO

SZP Series includes different types of head with several zoom ratios, according to the model selected.
SZP-6 provides a valuable 0.8 – 6x zoom (6.25:1 zoom ratio);
a more performing solution is SZP-8 (0.8 – 6.4x zoom; 8:1 zoom ratio).
When a wider ratio is needed by the most demanding for research users,
the perfect response is SZP-10 (0.8 – 8x zoom; 10:1 zoom ratio).

When combined with proper accessories (2x objective and 20x eyepieces),
SZP reaches much higher magnifications (e.g. SZP-10 delivers excellent images up to 320x).

Multiple Mounting Stands and Configurations

An extremely wide stand selection gives you the chance to create your tailored stereomicroscope!
Choose among the several models available to virtually cover every customers’ needs, in terms of illumination, arm extension, and focusing system.

Overhanging Stand, In Case Of Large Samples

This stand is recommended for efficient, quick and precise observation and digital imaging of large samples, that cannot be processed with regular stands.
Achieve 360° rotation and smooth movement with no limits, as the mechanism can be tilted from right to left, backward to forward.

SZP-6_model
SZP-6_icone

Model: SZP-6


CMO (Galilean), binocular stereozoom head with large field number (22mm), continuously adjustable zoom with 6.25:1 zoom ratio and 80mm working distance.

SZP-6ERGO_model
SZP-6ERGO_icone

Model: SZP-6ERGO


CMO (Galilean), binocular stereozoom ergonomic head ensuring ultra-comfortable body posture, with a settable inclination 0-35°, diopter adjustment on both the eyepieces and 6.25:1 zoom ratio.

line
SZP-8_model
SZP-8_icone

Model: SZP-8


CMO (Galilean), binocular stereozoom head with large field number (22mm), continuously adjustable zoom with 8:1 zoom ratio and 80mm working distance.

SZP-8ERGO_model
SZP-8ERGO_icone

Model: SZP-8ERGO


CMO (Galilean), binocular stereozoom ergonomic head ensuring ultra-comfortable body posture, with a settable inclination 0-35°, diopter adjustment on both the eyepieces and 8:1 zoom ratio.

line
SZP-8_model
SZP-8_icone

Model: SZP-10


CMO (Galilean), binocular stereozoom head with large field number (22mm), continuously adjustable zoom with 10:1 zoom ratio and 80mm working distance.

SZP-10ERGO_model
SZP-10ERGO_icone

Model: SZP-10ERGO


CMO (Galilean), binocular stereozoom ergonomic head ensuring ultra-comfortable body posture, with a settable inclination 0-35°, diopter adjustment on both the eyepieces and 10:1 zoom ratio.

line

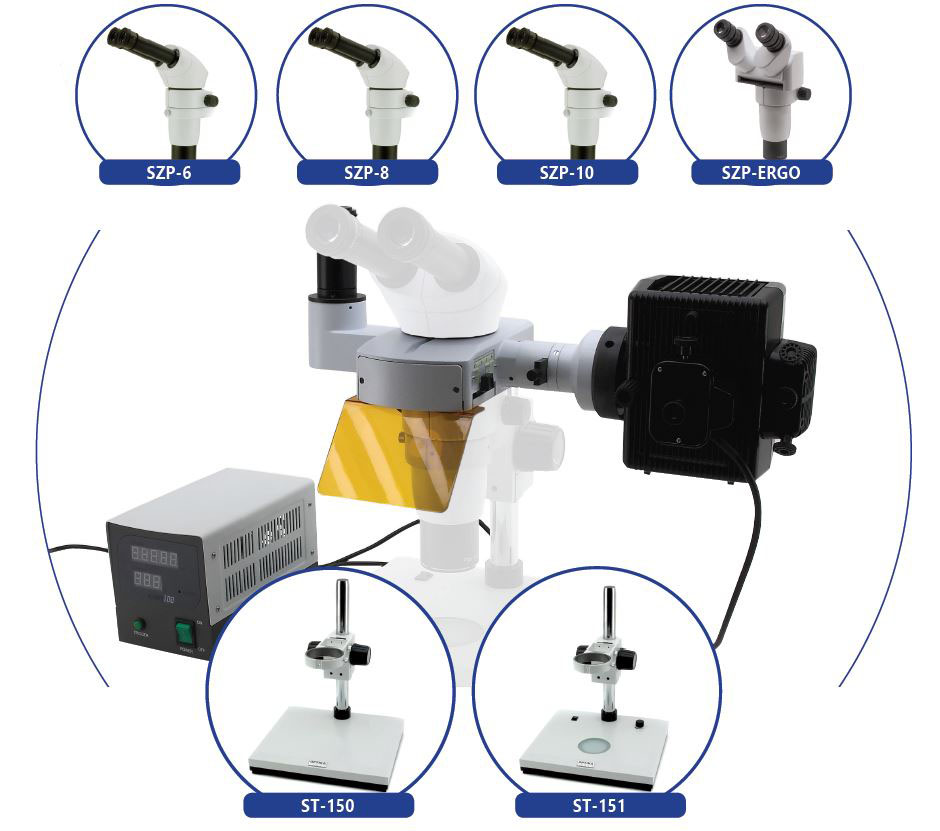

FLUORESCENCE - SZP-FL

Attachment for fluorescence applications for SZP stereomicroscopes only.

Used in many applications like biology, botany, electronics, materials, forensics. Equipped with HBO 100W mercury lamp illuminator.
To be combined with ST-150 or ST-151 stand.

SZP-FL_icone



Some application examples showing the extreme versatility of SZP Series. Application in education, biology, botany and simple material analysis, where all the samples are mounted on standard glass slides.

ACCESSORIES FOR SZP

  • ST-160 Eyepiece (pair) WF10x/22mm.
  • ST-161 Eyepiece (pair) WF15x/15mm.
  • ST-162 Eyepiece (pair) WF20x/12mm.
  • ST-163 Eyepiece micrometer WF10x/22mm, 10mm/100um.
  • ST-165 Objective 0.3x (w.d. 280mm).
  • ST-166 Objective 0.5x (w.d. 118mm).
  • ST-167 Objective 2x (w.d. 32,5mm).
  • ST-170 Photo/Video beam splitter – 1 port.
  • ST-171 Photo/Video beam splitter – 2 ports.
  • ST-172 Iris diaphragm module.
  • M-173 Photo adapter for APS-C and Full Frame Reflex cameras.
  • ST-174 Focusable C-Mount adapter for 1/3” sensor.
  • M-114 C-Mount adapter for 1/2” sensor.
    M-115 C-Mount adapter for 1/3” sensor.
  • M-116 C-Mount adapter for 2/3” sensor.
  • M-113.1 Ring adapter, 30mm (for monocular and binocular microscopes).
  • ST-176 Protective glass for SZP Series.
  • M-005 Micrometer slide for software calibration, 1mm/10um, 10mm/100um.
  • 15104 Cleaning kit.

GET THE MOST OUT OF OUR ACCESSORIES

ST-172 – Iris diaphragm module

With this accessory, the depth of field of the final image can be adjusted,
for applications where different planes all in focus are needed.

line

15104 – Cleaning kit

It cleans glass quickly and effectively, without leaving residue or odor.
Ideal for precision lens or prism cleaning.
