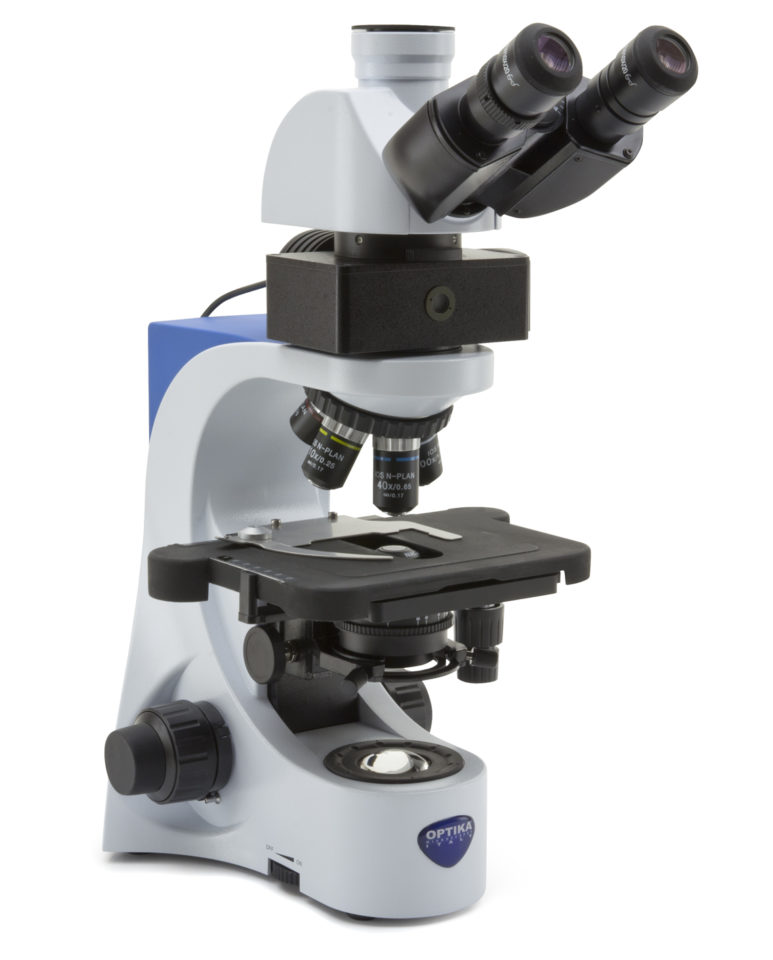

B-383LD


Back to B-380 Models
Back to Fluo Models

Observation mode: Brightfield, LED fluorescence.
Epi-illumination and filter: High-power blue LED with brightness control. 3-position filter holder; blue included.
Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.
Interpupillary distance: Adjustable between 48 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/20 mm, high eye-point and secured by screw.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives:
4x/0.10, W.D. 16.8 mm
10x/0.25, W.D. 5.8 mm
20x/0.40, W.D. 5.1 mm
40x/0.65, W.D. 0.43 mm
100x/1.25 (Oil/Water), W.D. 0.13 mm
All with anti-fungus treatment.
Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable.
Transmitted illumination (Fixed Koehler type): X-LED3 with white 3.6 W LED (6,300K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.



Related Literature:







Images are for illustrative purposes only

VALUABLE SUPPORT TO MALARIA & TBC DIAGNOSIS

The B-383LD1 LED fluorescent microscope is a cutting-edge solution designed to enable rapid diagnosis of malaria and TBC, by using acridine-orange staining technique. The optional no cover glass W-PLAN 50x/0.75 objective is required to ensure excellent results for stunning images.

The aim is to reduce the costs to a minimum and provide a cost-effective, intuitive but performing solution, purposely designed for these applications.
