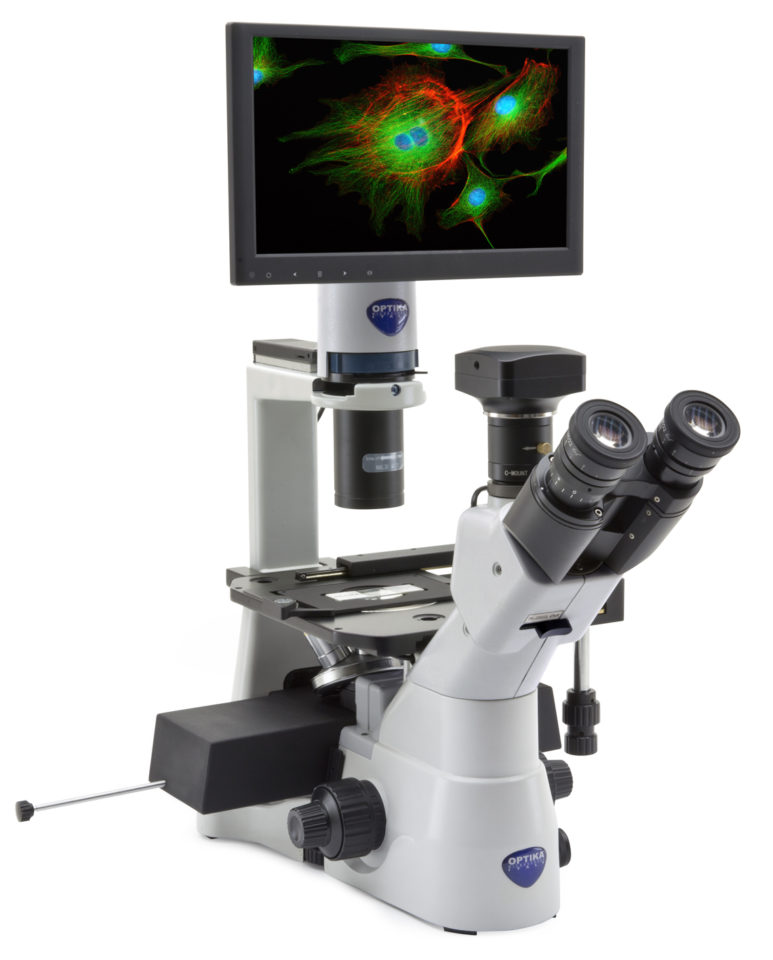

IM-300LD4D


Back to IM-300 Models
Back to Fluo Models

Observation mode: Brightfield, LED fluorescence.
Epi-illumination and filter: High -Power LED with brightness control. 4-position filter holder; none included.
Head: Trinocular (2-position 100/0, 0/100), 45° inclined.
Interpupillary distance: Adjustable between 50 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives:
IOS LWD U-PLAN F 10x/0.30
IOS LWD U-PLAN F 20x/0.45
IOS LWD U-PLAN F 40x/0.65
All with anti-fungus treatment.
Specimen stage: Mechanical stage, 250×290 mm, with glass and metal stage inserts for slides and 54mm dia. Petri dishes.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: LWD pre-centered condenser, N.A. 0.30, W.D. 72 mm.
Transmitted illumination: X-LED8 with white 8 W LED (6,300K) with brightness control. With aperture diaphragm. Multi-plug 100-240Vac/12Vdc external power supply.

Digital equipment:

Intel micro PC, 15.6” touch screen 4K, a 6Mpx high-sensitivity color camera, Optika ProView image analisys software for fluorescence and wireless mouse and keyboard.



Related Literature:





A new milestone achieved in Fluorescence Microscopy

» Full-modular Fluorescence System
» Interchangeable LED-Filtersets
» 4 LED-Filtersets slots
» 10% higher light intensity than HBO
» 35% higher light intensity than Metal-Halide
» Adjustable light intensity
» The selection of filtersets automatically involves the switching on of the corresponding LEDs
» Recommended for research applications
» Cost-effective, money saving technology
» Ready for immediate operation
» Eliminate warm-up/cool-down times
» Forget lamp replacement & centering

LED Fluorescence Cubes available (LED + Filterset)

line

Name: M-1230 – Blue


LED Emission (nm): 460
Excitation filter (nm):  455-495
Dichroic mirror cut-off (nm): 500
Emission filter (nm): 510LP

Name: M-1231 – Green


LED Emission (nm): 523
Excitation filter (nm):  510-550
Dichroic mirror cut-off (nm): 570
Emission filter (nm): 575LP

Name: M-1232 – Violet


LED Emission (nm): 405
Excitation filter (nm):  390-420
Dichroic mirror cut-off (nm): 440
Emission filter (nm): 450LP

Name: M-1233 – UV


LED Emission (nm): 405
Excitation filter (nm):  390-420
Dichroic mirror cut-off (nm): 440
Emission filter (nm): 450LP

Name: M-1234 – Red 1


LED Emission (nm): 623
Excitation filter (nm):  590-650
Dichroic mirror cut-off (nm): 660
Emission filter (nm): 665LP

Name: M-1235 – Red 2


LED Emission (nm): 623
Excitation filter (nm):  595-645
Dichroic mirror cut-off (nm): 655
Emission filter (nm): 665-715

Name: M-1236 – Deep Red


LED Emission (nm): 660
Excitation filter (nm):  623-678
Dichroic mirror cut-off (nm): 685
Emission filter (nm): 690-750

Name: M-1237 – Far Red


LED Emission (nm): 740
Excitation filter (nm):  720-760
Dichroic mirror cut-off (nm): 770
Emission filter (nm): 780LP

Name: M-1238 – Amber


LED Emission (nm): 590
Excitation filter (nm):  582-603
Dichroic mirror cut-off (nm): 610
Emission filter (nm): 615-645

PASS BAND LED FLUORESCENCE CUBES

M-1230.1 – Blue (pass band)


LED Emission (nm): 460
Excitation filter (nm): 455 – 495
Dichroic mirror cut-off (nm): 500
Emission filter (nm): 518-542

M-1231.1 – Green (pass band)


LED Emission (nm): 523
Excitation filter (nm): 510 – 550
Dichroic mirror cut-off (nm): 570
Emission filter (nm): 585-625

M-1233.1 – UV (pass band)


LED Emission (nm): 365
Excitation filter (nm): 340 – 390
Dichroic mirror cut-off (nm): 405
Emission filter (nm): 420-470
