IS-03

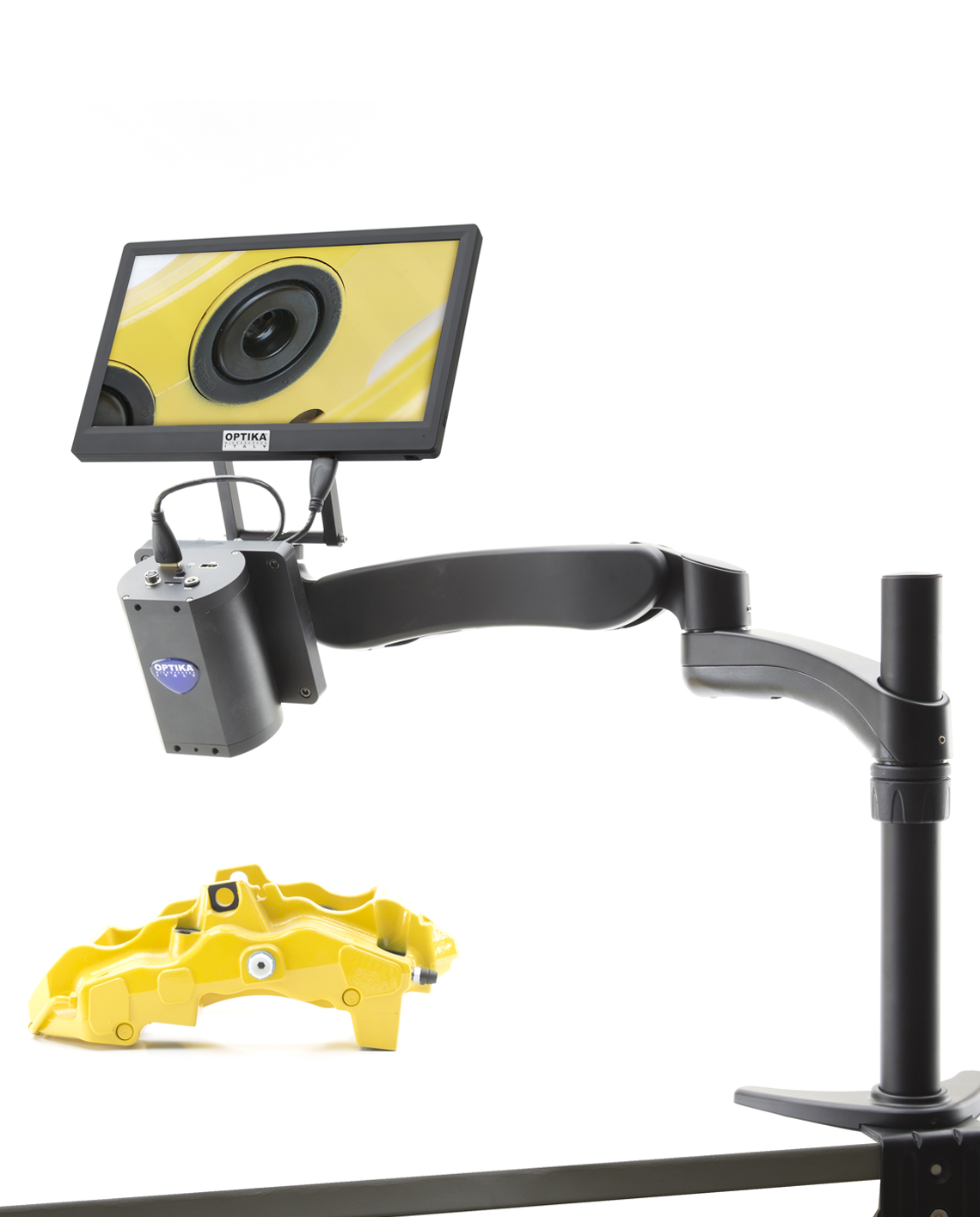

Advanced video inspection system, consisting in an extremely compact, flexible boom stand and a full HD autofocus camera (C-HAF).
OPTIKA C-HAF is a real-time full HD auto-focus inspection camera, with 2 MP resolution to view crystal clear 1080p images/videos on HD monitor, through HDMI connection at 60 fps. Its angle of view is fully adjustable.
Achieve instant focus without the need to constantly adjust your lens with the incredibly fast focusing system (acquisition time is lower than 1 sec.). The working distance is between 10cm and infinity, making it the ideal solution to inspect multi-layered objects, extremely quickly.
The camera is equipped with 1x-14x optical zoom and 1x-6x electronic zoom.
All functions are controlled directly from the screen.
Highly versatile flexible arm stand, 360°rotating, it is ideal when needing to process high and large samples and on every bench thanks to its compact footprint, saving valuable space on the bench. A wall mounting system is also included.
CAMERA
Image Sensor: CMOS sensor Sony Exmor
Sensor dimensions: 1/2.8”
Effective pixels: 2 MP
Output: HDMI
Power: DC5V
Operation control: Remote control
Scanning: Progressive Scanning
White balance: Manual/Auto/OnePush
Exposure: Manual/Auto
Shutter speed : 1/50s(1/60s)-1/10000s
SNR: >50dB
Frame Rate: 1080p@60fps
Operating Temp: 0°C – 50°C
Weight: 500g
Optical Zoom 1x-14x
Digital Zoom 1x-6x
Working Distance: From 10cm to Infinity
Focusing System: Autofocus / Manual focus
STAND
Type: High-performance flexible arm stand. 3D-joint for easy camera positioning, freely rotatable and tiltable. Adjustable and lockable height. Table mount and wall mount. Mount for LCD screen.
Pillar: Ø35×327 mm.
Maximum Extension: 577 mm.
Depth from Pole (Closed): 75 mm
Tilt adjustment: +/- 90° degree.
Swing adjustment: +/- 90° degree.
Pivot: 360° / 180° / 360° degree.
Weight: 7.50 kg
SCREEN

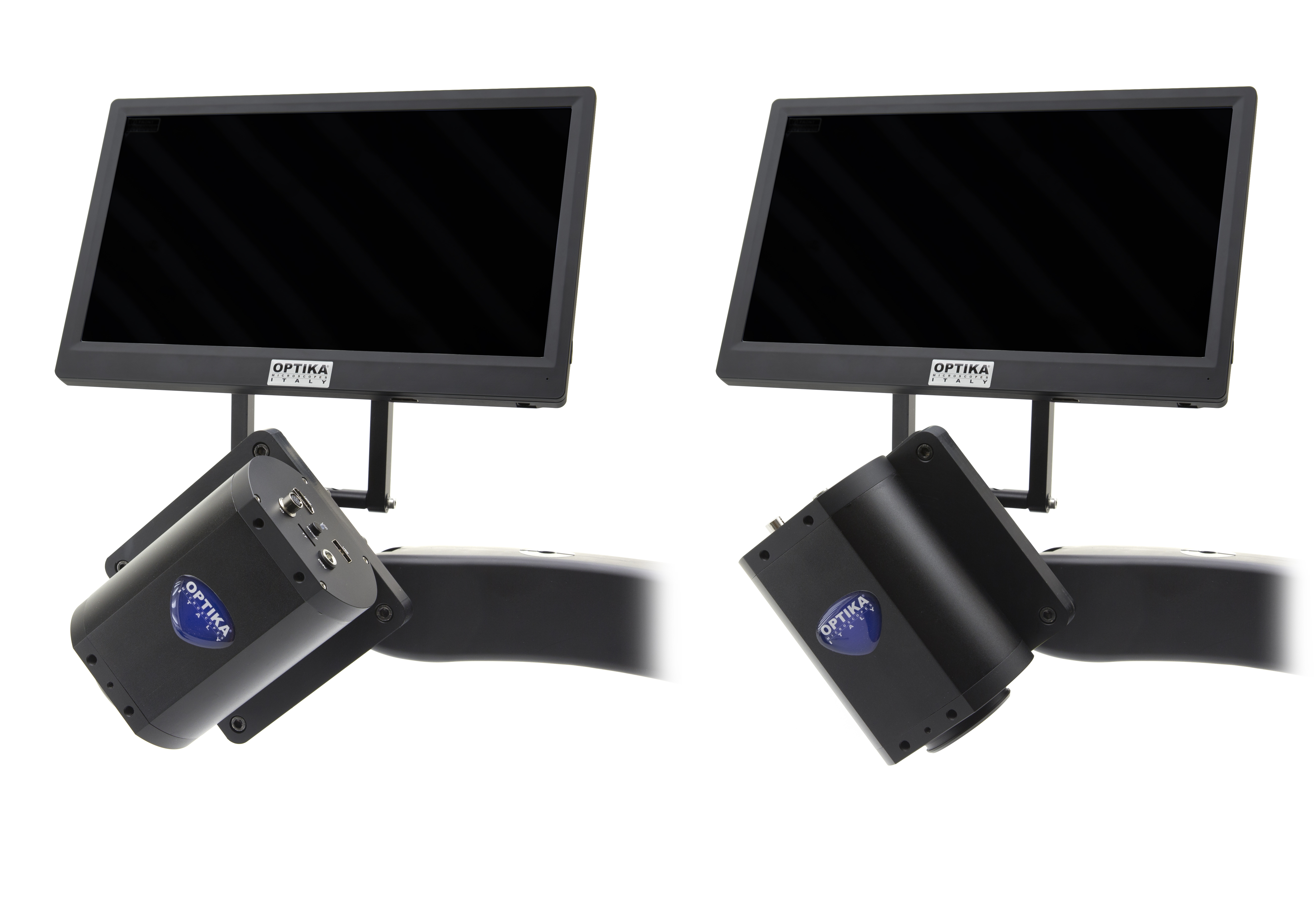

11.5” Full HD HDMI LCD Screen. 360° rotating. Freely inclinable for ergonomic vision.
ACCESSORIES
Accessories Included: Wireless mouse, 30 cm HDMI cable 8 GB micro SD, Power supply.
