SLX-5


Back to Other Models

Head: Trinocular, 45° inclined; 360° rotating.
Dioptric adjustment:
Both eyepieces.
Eyepieces:

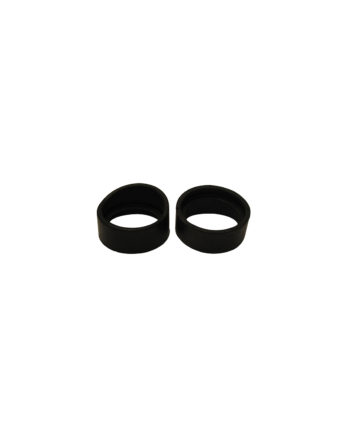

WF10x/21 mm, high eyepoint, secured by screw and with rubber cups.
Objective:
Parfocal achromatic zoom 0.7x…4.5x (6.43:1 ratio) with anti-fungus treatment.
Working distance:
100 mm.
Focusing:
Rack and pinion mechanism controlled by a pair of knobs placed on both sides of the stand.
Stand:
Overhanging stand 420 mm high, 430 mm horizontal arm length, base 230×230 mm with following adjustments: heigh, longitudinal extension and head rotation angle (left-right).
