B-380 Series

This series incorporates all the experience gathered by OPTIKA Microscopes in the field of light microscopy, adapted specifically for common laboratory applications. Suitable for routine microscopy with brightfield, darkfield (oil and dry), phase contrast, fluorescence and polarized light, designed to be extremely stable on the bench and last long.





Related Literature:





Images are for illustrative purposes only

Improving The Most Important Aspects of Microscopy Experience

HIGH QUALITY, FLAT IMAGES CAPTURED WITH OUTSTANDING OPTICS

» Binocular and trinocular heads with 20mm field number
» True infinity optical system available (IOS)
» Fully centerable condenser for precise light control

LABORATORY GRADE OPTICS

» N-PLAN objectives, high numerical apertures
» Planachromatic optics with more than 90% flat field
» Significant optical correction, low field curvature and distortion

X-LED³ Exclusive Lighting Source

Achieve bright images, improved colour fidelity, pure white colour temperature, incredibly low energy consumptions and longer lifespan with the unique X-LED³ technology, able to double the light intensity for incomparable performance. Relevant money and energy saving thanks to the incredibly low energy consumptions which allows you to cut the electricity bills by 90%!

X-LED³ – Two Times Brighter Than Any Other

STATE-OF-THE-ART ILLUMINATION SYSTEM

» Unmatched colour fidelity and brightness of your specimen
» Special technology, able to double the light intensity
» Constant pure-white colour temperature (6.300K)

CUT ELECTRICITY BILLS BY 90%

» Money & energy saving
» Low power consumption, only 3.6W
» LED long lifetime (65,000 hours = 25 years at 8 hours/day usage)

xled3

ALC – Automatic Light Control, Only Available At OPTIKA

Incomparable Comfort With The Exclusive Automatic Light Control (ALC)
Automatic light intensity regulation. Seamless operation with instant brightness adjustment, automatically performed by the microscope for you. No matter if the aperture of the dia­phragm changes, if another objective is used, and if the opacity of the sample is different…the microscope will set the light for you according to your preferences.
On B-382PL-ALC, B-382PLi-ALC, B-382PH-ALC & B-382PHi-ALC.

3-STEPS EASY SETTING

» Choose the light intensity you prefer
» Press the button and set the light
» Change the objectives or close the diaphgram aperture: the
microscope will keep the same light intensity!

AUTOMATIC LIGHT CONTROL & ADJUSTMENT

» When another objective is used
» When the aperture diaphragm changes
» When processing another sample with different opacity

Safe And Convenient Operations

The rackless stage has been designed with a belt-driven mechanism that
allows a smooth movement without any protruding part.
This design gives you a more compact solution and lowers any risk
of injury after accidentally hitting the rack with your hands.

A New Frontier in Ergonomic Product Design

ELEGANT DESIGN WITHSTANDING EVERYDAY USE

» Ergonomic positioning of the main controls
» Long lasting mechanical parts, rackless moving stage
» Maintenance-free illumination system

EASY TO CARRY, LIGHT, STEADY

» Improving productivity, reducing fatigue
» Increases job accuracy and quality
» Easily portable, with comfortable handgrip

Large Specimen View (20mm Field Number)

Enjoy a 20mm field of view ensures you to gain peripheral view and comfort when observing the specimen. This means more efficient inspections and allows a natural and easy view, particularly needed in a laboratory environment.

Brightfield Models

B-383PL-ALC_models

Model: B-382PL-ALC


Brightfield binocular microscope with N-PLAN objectives, rackless stage and combining the exclusive  X-LED³ with ALC (Automatic Light Control) for great-looking, rich and high-quality view.

B-383PL_models

Model: B-383PL


Brightfield trinocular microscope with N-PLAN objectives, rackless stage and the exclusive X-LED³ for great-looking, rich and high-quality view.

B-382PLi-ALC_model

Model: B-382PLi-ALC


Brightfield binocular microscope with IOS N-PLAN (Infinity Corrected) objectives, rackless stage and combining the exclusive X-LED³ with ALC (Automatic Light Control) for great-looking, rich and high-quality view.

B-383PLi_model

Model: B-383PLi


Brightfield trinocular microscope with IOS N-PLAN (Infinity Corrected) objectives, rackless stage and the exclusive X-LED³ for great-looking, rich and high-quality view.

line

Phase Contrast Models

B-382PH-ALC_model

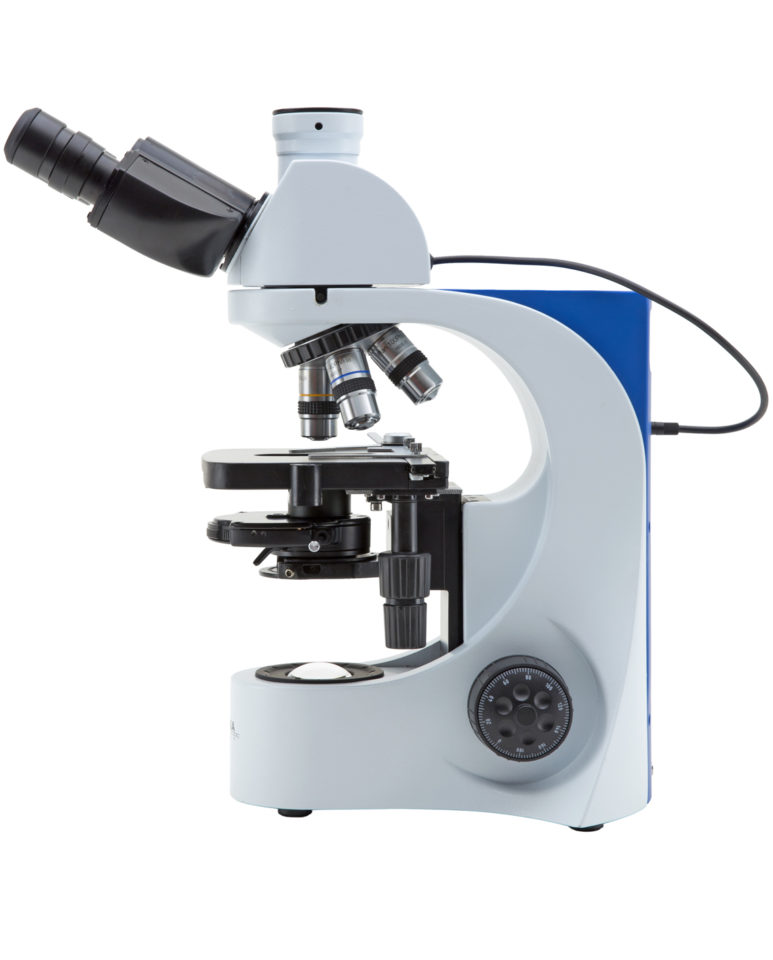

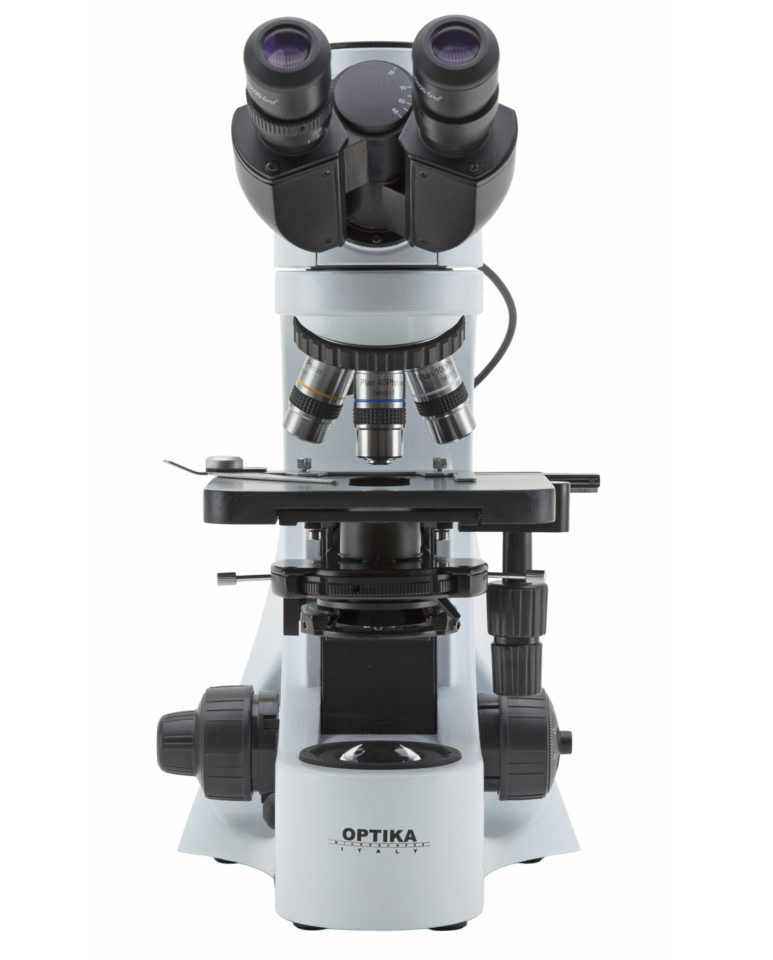

Model: B-382PH-ALC


Phase contrast, darkfield and brightfield binocular microscope with W-PLAN objectives, rackless stage and combining the exclusive X-LED3
with ALC (Automatic Light Control) for great-looking, rich and highquality view.

B-383PH_model

Model: B-383PH


Phase contrast, darkfield and brightfield trinocular microscope with W-PLAN objectives, rackless stage and the exclusive X-LED3 for
great-looking, rich and high-quality view.

B-382PHi-ALC_model

Model: B-382PHi-ALC


Phase contrast, darkfield and brightfield binocular microscope with IOS W-PLAN (Infinity Corrected) objectives, rackless stage and combining
the exclusive X-LED3 with ALC (Automatic Light Control) for great-looking, rich and high-quality view.

B-383PHi_model

Model: B-383PHi


Phase contrast, darkfield and brightfield microscope with IOS W-PLAN (Infinity Corrected) objectives, rackless stage and the exclusive X-LED3
for great-looking, rich and high-quality view.

line

Darkfield Models

B-383DK_models

Model: B-383DK


Laboratory upright microscope for brightfield and darkfield observations with N-PLAN objectives (and W-PLAN 100x with iris) for biology and especially darkfield fresh blood analysis and the exclusive X-LED3 illumination system. The special condenser with integrated, exclusive X-LED3 illuminator replaces any other external and expensive lighting source required for these applications and is ideal for great-looking, rich and high-quality specimen view. Our immersion darkfield system provides the same result achieved by 150W external illuminators in combination with traditional cardioid darkfield condenser.

line

HBO Fluorescence Models

B-383FL_models

Model: B-383FL


Laboratory upright microscope for brightfield and fluorescence observations with IOS N-PLAN objectives.
The HBO fluorescence illuminator provides an outstanding flexibility of use, standing the blue and green filter sets (supplied as standard) for Auramine, FITC, GFP and YFP (with blue filter set) plus Rhodamine, Texas Red and TRITC (with the green one), yet giving the possibility to combine any other specific filter sets for future upgrade. Transmitted light through the exclusive X-LED3 to ensure great-looking, rich and high-quality specimen view.

line

LED Fluorescence Models

B-383LD1_model

Model: B-383LD1


Entry-level laboratory upright microscope for brightfield and fluorescence observations with IOS N-PLAN objectives. The extremely powerful LED fluorescence illuminator is combined with blue excitation filter set for the visualization of the following fluorochromes: Acridine Yellow, Acridine Orange, Auramine, DiO, DTAF, FITC, GFP, YFP, etc. LED fluorescence ensures unparalleled convenience eliminating warm-up/cool-down times and all the inconveniences related lamp replacement and adjustment. Transmitted light through the exclusive X-LED3 to ensure great-looking, rich and high-quality specimen view.

B-383LD2_model

Model: B-383LD2


Laboratory upright microscope for brightfield and fluorescence observations with IOS N-PLAN objectives. The extremely powerful LED fluorescence illuminator is combined with blue and green excitation filter set for the visualization of the following fluorochromes: Acridine Yellow, Acridine Orange, Auramine, DiO, DTAF, FITC, GFP, YFP, etc. (blue) plus Rhodamine, Texas Red and TRITC (green). LED fluorescence ensures unparalleled convenience eliminating warm-up/cool-down times and all the inconveniences related lamp replacement and adjustment. Transmitted light through the exclusive X-LED3 to ensure great-looking, rich and high-quality specimen view.

line

Polarizing Models

B-383POL_model

Model: B-383POL


Upright microscope for brightfield and polarizing light observations with strain-free IOS N-PLAN POL objectives. Complete of polarizer and analyzer filters, Bertrand lens for conoscopic observation, compensator plates and high-precision rotatable stages. It comes with the exclusive X-LED3 illumination system to deliver bright and clear images, along with all the accessories to perform accurate polarization analysis in biology and materials science.

line

Metallurgical Models

B-383MET_model

Model: B-383MET


Brightfield upright microscope with IOS W-PLAN MET objectives and metallurgical attachment combining the exclusive X-LED3 lighting source both for incident and transmitted illumination. The NCG (no cover glass) objectives are especially designed for microscopy use without a cover slip ideal for metallographic samples and other opaque specimens.



Some application examples showing the extreme versatility of B-380 Series in its several available configurations. Applications in education, biology, botany and simple material analysis. This series represents the best entry-level solution for the routine laboratory.
