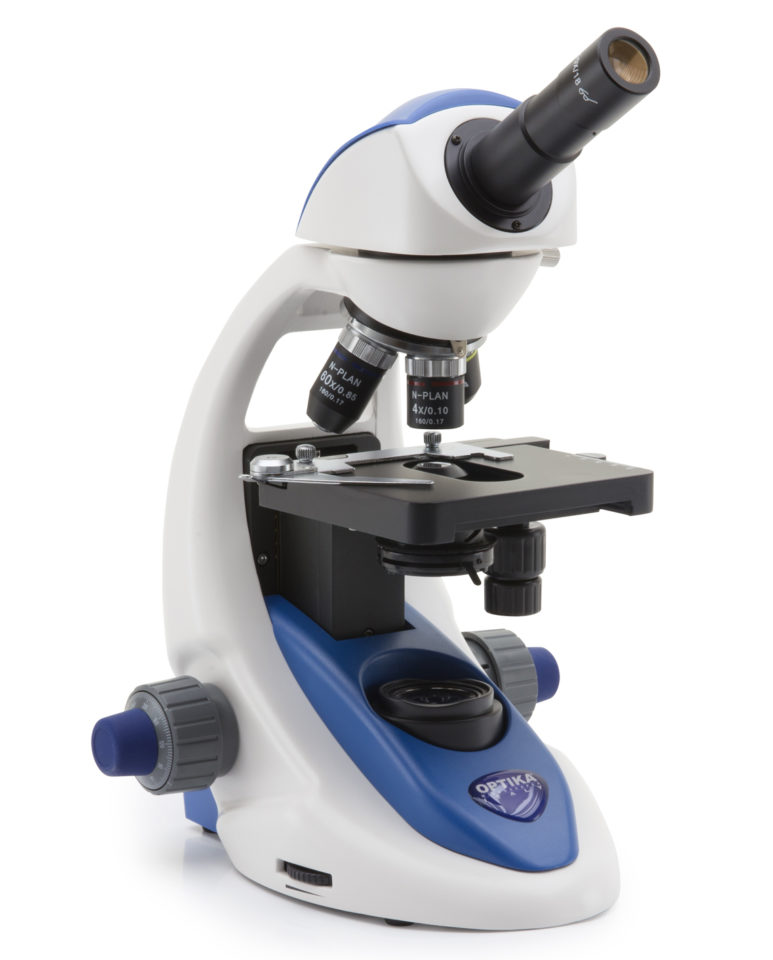

Monocular microscope ideal for teachers and secondary schools, with four N-PLAN objectives (600x), FN 18 high eyepoint, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 3 W X-LED2 illumination. Slim and easy to carry, yet sturdy and resistant, it is equipped with all the main controls to start learning how to use an advanced microscope and with long lasting LED illumination to provide over 20 years of use.
Observation mode: Brightfield.
Head: Monocular, 360° rotating and 30° inclined.
Eyepiece: WF 10x/18 mm, secured by screw.
Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings.
– N-PLAN objective 4x/0.10
– N-PLAN objective 10x/0.25
– N-PLAN objective 40x/0.65
– N-PLAN objective 60x/0.85
All with anti-fungus treatment.
Specimen stage: Double layer mechanical sliding stage, 125×115 mm, 70×30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Condenser: Abbe N.A. 1.25, pre-centered, adjustable height with iris diaphragm.
Illumination: X-LED² with white 3 W LED and light intensity control.
Color temperature: 6,300 K. Multi-plug 100-240Vac/6Vdc external power supply.
